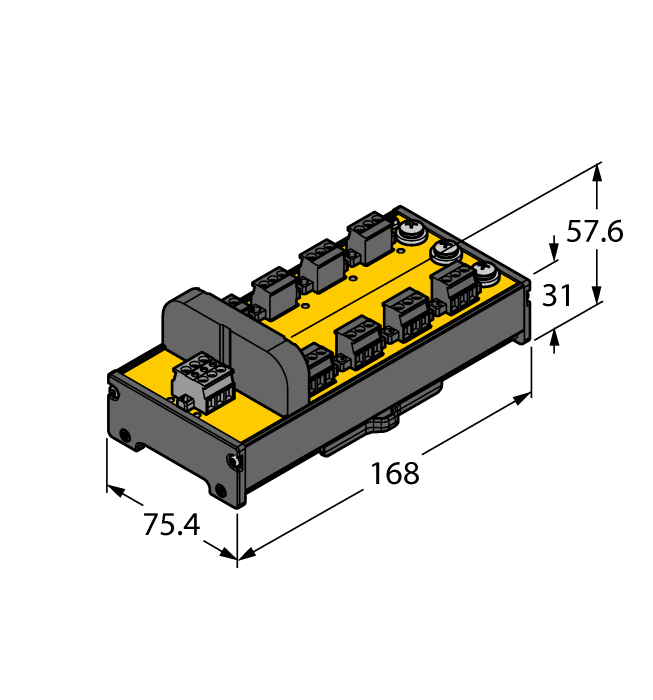

Turck Jrbs-40Dc-8Rv Fieldbus & Profibus 6611834

(No reviews yet) Write a Review
SKU:
JRBS-40DC-8RV
Condition:
New
Availability:
Factory Stock: 19
EAN:
4047101284171
eCl@ss-Code (V5.1.4)::
27250201 -/- Network components (fieldbus)
Customs tariff number:
85369095000
Country of origin:
DE
Weight:
570 g
Fieldbus Protocol:
FOUNDATION fieldbus, PROFIBUS-PA
Device type:
Active fieldbus junction box
Ambient temperature:
-50…+70 °C
Protection class:
IP20
Approvals:
ATEX, Ex-Approval, IECEx, FM
$601.70

Description

FOUNDATION fieldbus and PROFIBUS-PA, IP20 Junction Box with Short-circuit Protection, 8-channel, Entity and FISCO compliant according to IEC 60079-11, Junction box for DIN rail mounting, Short-circuit protection per drop line/spur, , Pre-assembled terminating resistor, Cable shielding: Capacitive or direct connection established via two M5 threaded bolts, Aluminium housing
