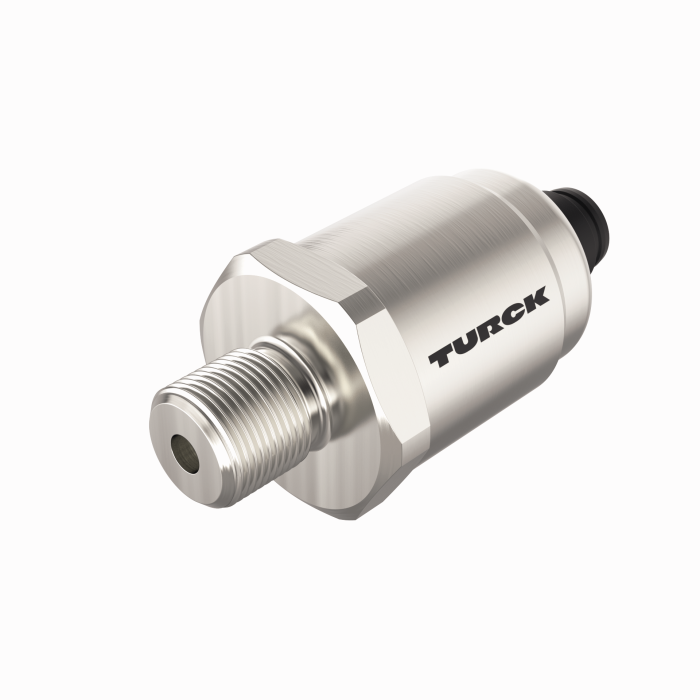

Turck Pt5Psiv-1503-I2-H1143/D840 Pressure 100004641
- SKU:
- PT5PSIV-1503-I2-H1143/D840
- Condition:
- New
- EAN:
- 4047101502237
- eCl@ss-Code (V5.1.4)::
- 27200614 -/- Piezoresistive sensor (absolute and relative pressure)
- Customs tariff number:
- 90262020000
- Country of origin:
- CH
- Weight:
- 88 g
- Process connection:
- 1/4? NPT-18 male thread
- Current output:
- 4 20 mA
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Medium temperature:
- -15 +85 °C
- Ambient temperature:
- -25 +85 °C
- Protection class:
- IP67
Description
Pressure Transmitter, With Current Output (2-Wire), Ceramic measuring cell, Extremely high measuring accuracy, Compact and robust design, Excellent temperature behavior, , 1030VDC, Analog output 420 mA, Pressure range -55 psi rel. Ceramic measuring cell; Extremely high measuring accuracy; Compact and robust design; Excellent temperature behavior; Pressure range -5
5 psi rel.; 10
30 VDC; Analog output 4
20 mA; Process connection 1/4-18 NPT male thread; Plug-in device; M12 × 1;
