SMC VM1010-4NU-00 Mechanical Valve

(No reviews yet) Write a Review
SKU:
VM1010-4NU-00
Condition:
New
Availability:
In stock: 91
Actuator Type:
Basic Style
Applicable Tubing:
TS0425, Nylon ?ÿ4/3T0403, Polyurethane ?ÿ4/2.5TU0425
Overall Movement:
4.8mm
Piping:
Bottom Ported
Number of Ports:
3 Port
$14.10

Description

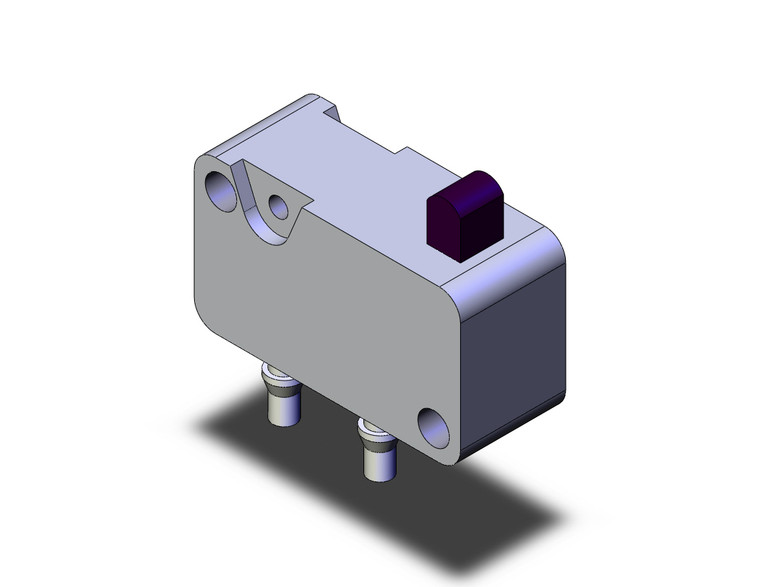

VM1000, Micro Mechanical Valve

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
-

- Fluid: air
- Operating pressure: 5 to 0.8MPa
- Effective area (Cv): 1mm 2 (0.055)
- Style of valve: N.C. poppet
- Number of ports: 2 or 3
- Piping: side or bottom
-

Series Catalog

AutoCAD File
