WAGO 2002-402/000-005 Pack of 25
Wago
$16.63

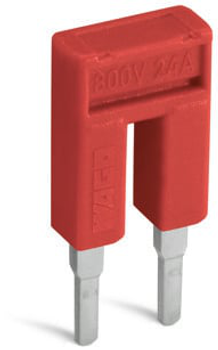

TOPJOBS jumper; for 2002 series; insulated; 2-way; red.
The insulated push-in type comb-style jumper bar from WAGO's 2002 TOPJOB S series is a 2-way, 2-pole (2P) component designed for electrical connections. It has a rated current of 25A and comes in a red color, equivalent to the part number 2002402000005.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 26.45 mm / 1.041 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.164 MJ
- flammability class per ul94:
- V0
- height:
- 18.8 mm / 0.74 inch
- height from the surface:
- 14.3 mm / 0.563 inch
- housing sheet thickness:
- 0.6 1.2 mm / 0.024 0.047 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- Snap-in foot || Panel mounting
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- packaging type:
- Box
- pin spacing:
- 5.08 mm / 0.2 inch
- pole no:
- 6
- rated current:
- 16 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 11.165 g
- width:
- 31.98 mm / 1.259 inch
