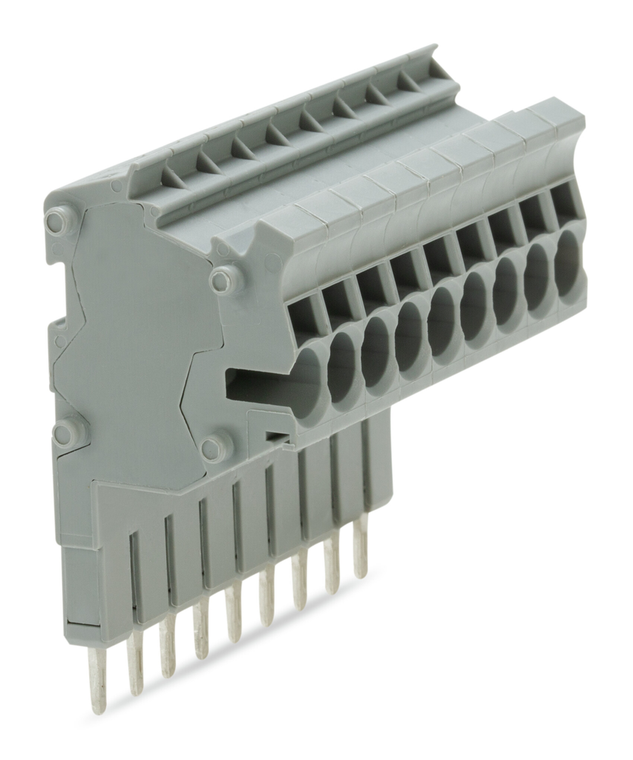

WAGO 2002-559

(No reviews yet) Write a Review

Write a Review

×

WAGO 2002-559

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2002-559

Condition:

New

actuation type:

Operating tool

color:

Gray

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.459 MJ

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

module width:

5.2 mm / 0.205 inch

nominal cross section:

2.5 mm

nominal voltage iii 3:

500 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

pole no:

9

rated current:

24 A

rated surge voltage iii 3:

6 kV

safety information 1:

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

24.723 g

width:

46.8 mm / 1.843 inch

wiring direction:

Side-entry wiring
