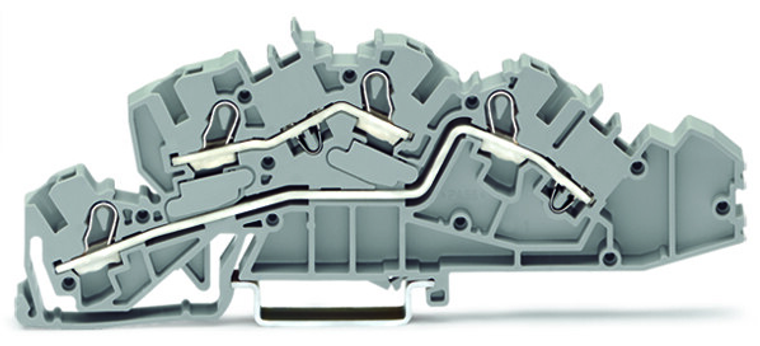

Multilevel installation terminal block; with operating slots; 4 mm²; L/L; Push-in CAGE CLAMP; 4,00 mm²; gray.
The WAGO 2005 TOPJOB S series multilevel installation feed-through terminal block features a double-deck design with side and center marking slots, marked "L/L." It is gray, accommodates two feed-through poles and four wires (two push-in connections per pole), and supports a nominal cross-section of 4mm² for wire sizes ranging from 0.5mm² to 6mm² (#20AWG to #10AWG). The terminal block is rated for currents of 32A and 36A, utilizes Push-in CAGE CLAMP spring connections, and mounts on a DIN-35 rail with a width of 6.2mm, equivalent to model 20057642.
- actuation type:
- Push-in || Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 41.7 mm / 1.642 inch
- design:
- Angled
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 4 mm / 18 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.363 MJ
- flammability class per ul94:
- V0
- height:
- 123.9 mm / 4.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 400 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 32 A
- rated current 2:
- 36 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor push in termination:
- 1.5 6 mm / 14 10 AWG
- strip length:
- 11 13 mm / 0.43 0.51 inch
- weight:
- 21.548 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
