Description

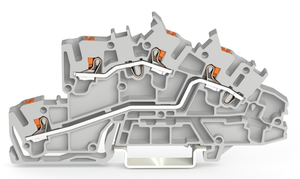

Multilevel installation terminal block; with push-button; 4 mm²; L/L; Push-in CAGE CLAMP; 4,00 mm²; gray
View AllClose
Additional Information
actuation type: |
Push-in || Push-button || Operating tool |
color: |
Gray |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP« |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
45.6 mm / 1.8 inch |
fine stranded conductor: |
0.5 ª 6 mm / 20 ª 10 AWG |
fine stranded conductor with ferrule push in termination: |
1.5 ª 4 mm / 18 ª 12 AWG |
fine stranded conductor with insulated ferrule: |
0.5 ª 4 mm / 20 ª 12 AWG |
fire load: |
0.006 MJ |
flammability class per ul94: |
V0 |
height: |
123.5 mm / 4.862 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) « Overvoltage category III / Pollution degree 3 |
marking level: |
Center/side marking |
mounting type: |
DIN-35 rail |
nominal cross section: |
4 mm |
nominal voltage iii 3: |
400 V |
note: |
Available January 2022 |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
packaging type: |
Box |
rated current: |
32 A |
rated current 2: |
36 A |
rated surge voltage iii 3: |
6 kV |
solid conductor: |
0.5 ª 6 mm / 20 ª 10 AWG |
solid conductor push in termination: |
1.5 ª 6 mm / 14 ª 10 AWG |
strip length: |
11 ª 13 mm / 0.43 ª 0.51 inch |
weight: |
21.776 g |
width: |
6.2 mm / 0.244 inch |
wiring direction: |
Front-entry wiring |
