Description

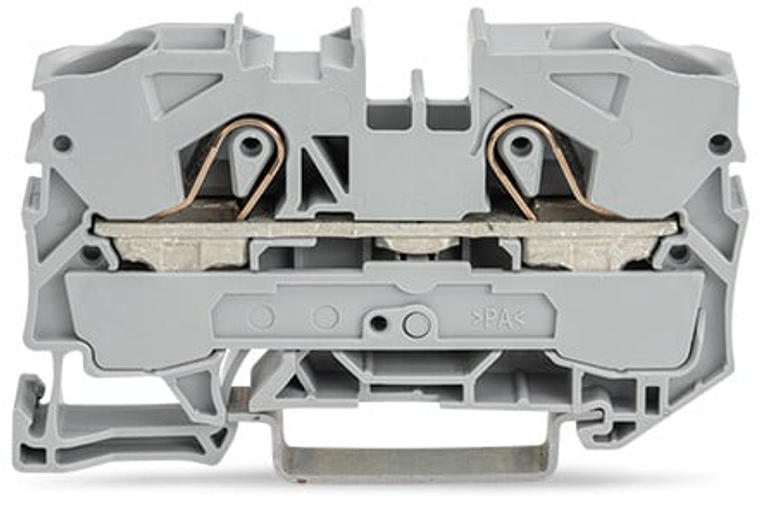

2-conductor through terminal block; 10 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 10,00 mm²; light gray
View AllClose
Additional Information
actuation type: |
Push-in || Operating tool |
color: |
Light gray |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP« |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
36.9 mm / 1.453 inch |
design: |
Horizontal type |
fine stranded conductor: |
0.5 ª 16 mm / 20 ª 6 AWG |
fine stranded conductor with ferrule push in termination: |
4 ª 10 mm / 12 ª 8 AWG |
fine stranded conductor with insulated ferrule: |
0.5 ª 10 mm / 20 ª 8 AWG |
fire load: |
0.000 MJ |
flammability class per ul94: |
V0 |
height: |
67.8 mm / 2.669 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) « Overvoltage category III / Pollution degree 3 |
marking level: |
Center/side marking |
mounting type: |
DIN-35 rail |
nominal cross section: |
10 mm |
nominal voltage iii 3: |
800 V |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
packaging type: |
Box |
rated current: |
57 A |
rated current 2: |
76 A |
rated current csa use group b: |
65 A |
rated current csa use group c: |
65 A |
rated current ex e ii: |
51 A |
rated current ul use group b: |
65 A |
rated current ul use group c: |
65 A |
rated surge voltage iii 3: |
8 kV |
rated voltage csa use group b: |
600 V |
rated voltage csa use group c: |
600 V |
rated voltage en ex e ii: |
550 V |
rated voltage ul use group b: |
600 V |
rated voltage ul use group c: |
600 V |
ratings per: |
ATEX: PTB 05 ATEX 1070 U / IECEx: PTB 06.0003U (Ex eb IIC Gb) |
solid conductor: |
0.5 ª 16 mm / 20 ª 6 AWG |
solid conductor push in termination: |
4 ª 16 mm / 14 ª 6 AWG |
strip length: |
17 ª 19 mm / 0.67 ª 0.75 inch |
weight: |
18.140 g |
width: |
10 mm / 0.394 inch |
wiring direction: |
Front-entry wiring |
