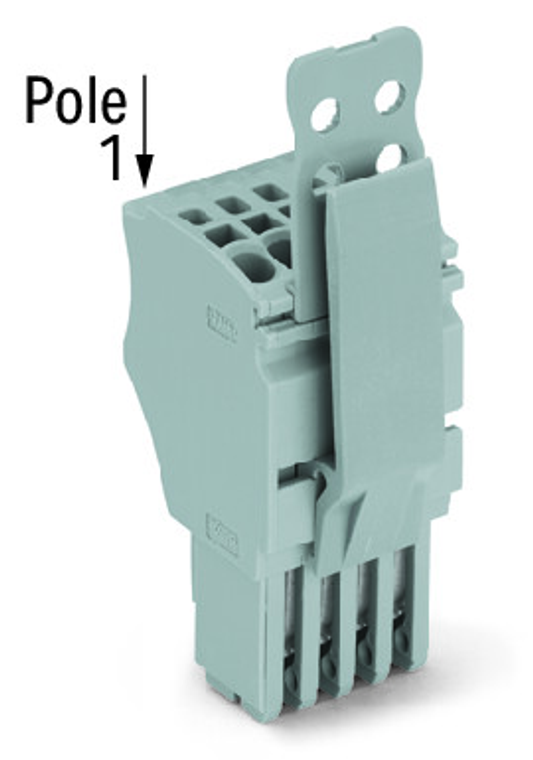

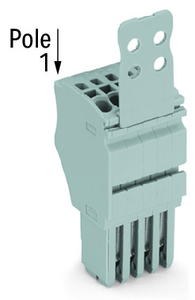

X-COM S-Mini female plug; rail mount; for 2020 series carrier terminal blocks; with strain relief plate and locking lever; 1-conductor; 2-pole; 7.7 mm wide; gray
View AllClose
Additional Information
actuation type: |
Operating tool || Push-in |
approvals per: |
UL 1059 |
color: |
Gray |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP |
connector connection type: |
For conductor |
contact type pluggable connector: |
Female connector/socket |
country of origin sales organisation germany: |
DE |
depth: |
27.2 mm / 1.071 inch |
fine stranded conductor: |
0.14 1.5 mm / 24 16 AWG |
fine stranded conductor with ferrule push in termination: |
0.5 0.75 mm / 20 18 AWG |
fine stranded conductor with insulated ferrule: |
0.14 0.75 mm / 24 18 AWG |
fire load: |
0.107 MJ |
flammability class per ul94: |
V0 |
height: |
56.5 mm / 2.224 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) Overvoltage category III / Pollution degree 3 |
marking level: |
Side marking |
module width: |
3.5 mm / 0.138 inch |
nominal cross section: |
1 mm |
nominal voltage iii 3: |
500 V |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
packaging type: |
Box |
pole no: |
2 |
rated current: |
13.5 A |
rated current csa use group b: |
0.416666666666667 |
rated current csa use group c: |
0.416666666666667 |
rated current csa use group d: |
0.416666666666667 |
rated current ul use group b: |
15 A |
rated current ul use group c: |
15 A |
rated current ul use group d: |
15 A |
rated surge voltage iii 3: |
6 kV |
rated voltage csa use group b: |
300 V |
rated voltage csa use group c: |
300 V |
rated voltage csa use group d: |
300 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group c: |
300 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 61984 |
safety information 1: |
According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. |
safety information 2: |
Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug. |
solid conductor: |
0.14 1.5 mm / 24 16 AWG |
solid conductor push in termination: |
0.5 1.5 mm / 20 16 AWG |
strip length: |
9 11 mm / 0.35 0.43 inch |
weight: |
5.450 g |
width: |
7.7 mm / 0.303 inch |
wiring direction: |
Front-entry wiring |
