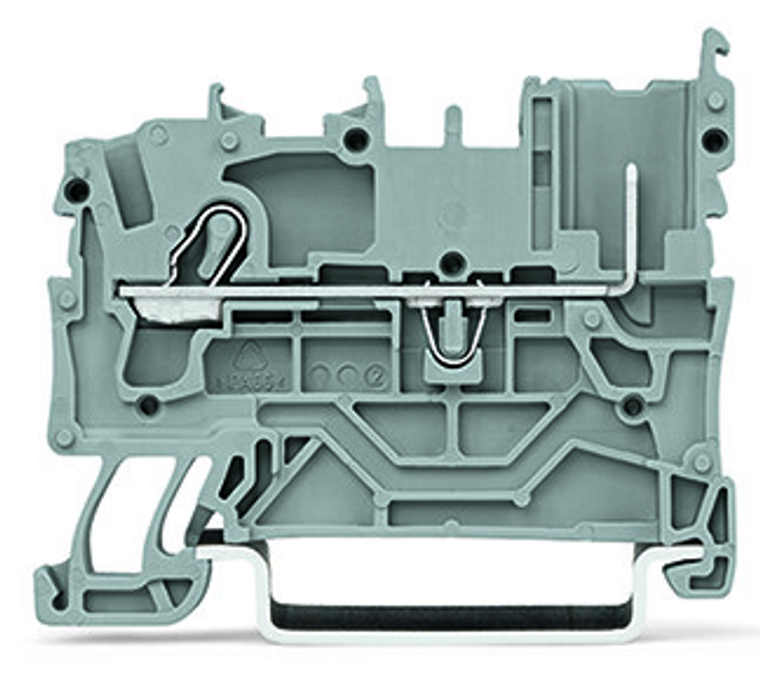

WAGO 2022-1201/999-953
- SKU:
- 2022-1201/999-953
- Condition:
- New
Additional Information
actuation type: |
Operating tool || Push-in |
approvals per: |
C22.2 No 158 |
color: |
Gray |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP |
country of origin sales organisation germany: |
CN |
depth from upper edge of din rail: |
32.5 mm / 1.28 inch |
design: |
Horizontal type |
fine stranded conductor: |
0.25 4 mm / 22 12 AWG |
fine stranded conductor with ferrule push in termination: |
1 2.5 mm / 18 14 AWG |
fine stranded conductor with insulated ferrule: |
0.25 2.5 mm / 22 14 AWG |
fire load: |
0.112 MJ |
flammability class per ul94: |
V0 |
height: |
48.5 mm / 1.909 inch |
insulation material: |
Polyamide (PA66) |
marking level: |
Center/side marking |
mounting type: |
DIN-35 rail |
nominal cross section: |
2.5 mm |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
number of connection points: |
1 |
number of connection points 2: |
1 |
packaging type: |
Box |
rated current: |
20 A |
rated current csa use group c: |
20 A |
rated current ul use group b: |
20 A |
rated current ul use group c: |
20 A |
rated voltage csa use group c: |
600 V |
rated voltage en ex e ii: |
630 V |
rated voltage ul use group b: |
600 V |
rated voltage ul use group c: |
600 V |
ratings per: |
IEC/EN 60947-7-1 |
solid conductor: |
0.25 4 mm / 22 12 AWG |
solid conductor push in termination: |
0.75 4 mm / 18 12 AWG |
strip length: |
10 12 mm / 0.39 0.47 inch |
weight: |
5.020 g |
width: |
5.2 mm / 0.205 inch |
wiring direction: |
Front-entry wiring |
