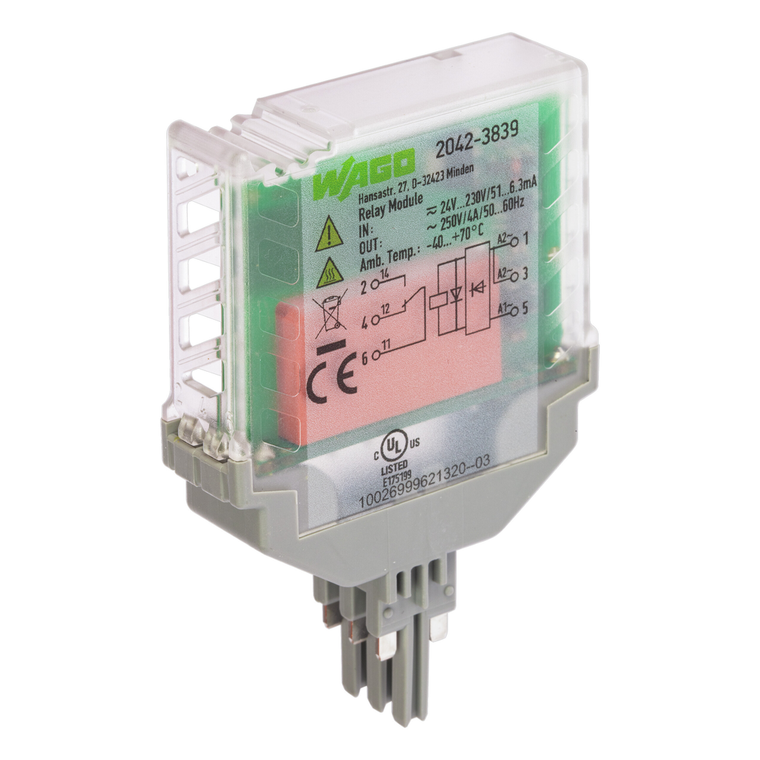

RELAC/DC 24-230V
View AllClose
Technical Data
- Nominal input voltage U<sub>N</sub>: AC/DC 24 230 V
- Input voltage range: 10 %
- Nominal input current at U<sub>N</sub>: 6 mA (230 V); 50.2 mA (24 V)
- Number of changeover/switchover contacts: 1
- Contact material (relay): AgNi
- Limiting continuous current: 4 A
- Max. make current (resistive): (AC) 30 A / 4 s
- Max. switching voltage: AC 250 V
- Max. switching power (resistive): AC 1000 VA; DC see load limit curve
- Switching capacity: AC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V
- Recommended minimum load: 12 V / 10 mA
- Pull-in time (typ.): 8 ms
- Drop-out time (typ.): 6 ms
- Bounce time (typ): 4 ms
- Electrical life (N.O.; resistive load; 23 C): 100 x 10<sup>3 </sup>switching operations
- Mechanical life: 10 x 10<sup>6</sup> switching operations
- Status indication: LED green
- Rated voltage: 250 V
- Pollution degree: 2
- Dielectric strength, control/load circuit (AC, 1 min): 3 kVrms
- Dielectric strength open contact (AC, 1 min): 1 kVrms
- Protection class: IP20
Geometrical Data
- Width: 15.5 mm / 0.61 inch
- Height: 77.7 mm / 3.059 inch
- Height from the surface: 59.3 mm / 2.335 inch
- Depth: 52 mm / 2.047 inch
Mechanical Data
- Type of mounting: Pluggable module for TOPJOB<sup> </sup>S carrier terminal block
Material Data
- Flammability class per UL94: V0
- Fire load: 0.000 MJ
- Weight: 36.300 g
Environmental Requirements
- Surrounding air (operating) temperature at U<sub>N</sub>: -40 70 C
- Surrounding air (storage) temperature: -40 85 C
- Processing temperature: -25 +50 C
- Max. operating altitude: 2000 m
Standards and specifications
- Standards/specifications: EN 61010-2-201; EN 61373; EN 50121-3-2
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143651943
- Customs Tariff No.: 85364900990
