Description

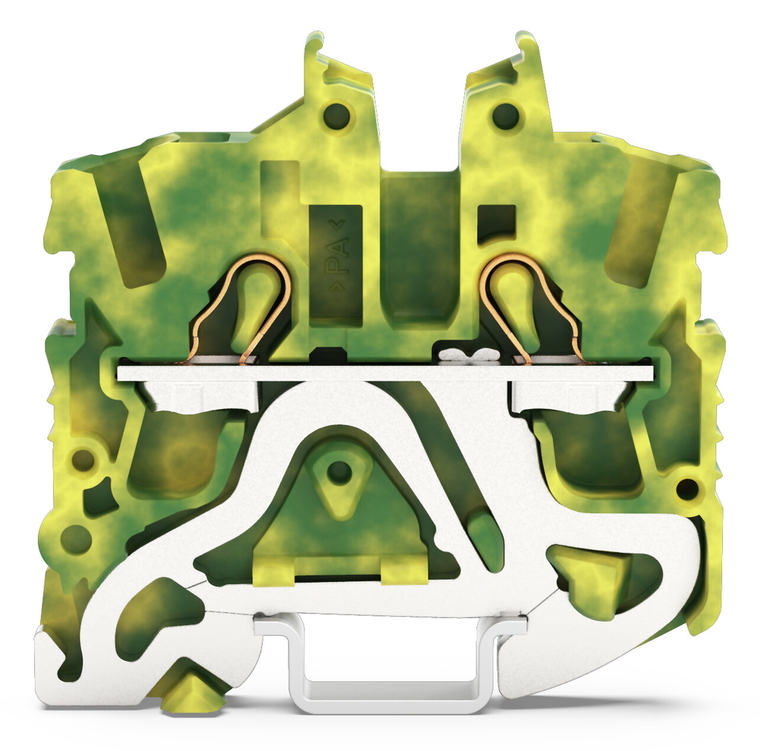

2-conductor miniature ground terminal block; with operating slots; 2.5 mm²; with test port; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP; 2,50 mm²; green-yellow
View AllClose
Additional Information
actuation type: |
Push-in || Operating tool |
color: |
Green-yellow |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP« |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
30.8 mm / 1.213 inch |
design: |
Horizontal type |
fine stranded conductor: |
0.25 ª 4 mm / 22 ª 12 AWG |
fine stranded conductor with ferrule push in termination: |
1 ª 2.5 mm / 18 ª 14 AWG |
fine stranded conductor with insulated ferrule: |
1 ª 2.5 mm / 18 ª 14 AWG |
fire load: |
0.000 MJ |
flammability class per ul94: |
V0 |
height: |
36.5 mm / 1.437 inch |
insulation material: |
Polyamide (PA66) |
marking level: |
Center/side marking |
mounting type: |
DIN-15 rail |
nominal cross section: |
2.5 mm |
note: |
Available September 2021 |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
ratings per: |
IEC/EN 60947-7-2 |
solid conductor: |
0.25 ª 4 mm / 22 ª 12 AWG |
solid conductor push in termination: |
1 ª 4 mm / 18 ª 12 AWG |
strip length: |
10 ª 12 mm / 0.39 ª 0.47 inch |
weight: |
7.106 g |
width: |
5.2 mm / 0.205 inch |
wiring direction: |
Front-entry wiring |
