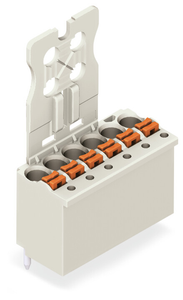

WAGO 2091-1153 1-conductor THT female header; 1.0 mm à solder pin; straight; Gripping plate; 1.5 mm²; Pin spacing 3.5 mm; 3-pole; 1,50 mm²; light gray
Wago
$2.75
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 2091-1153 1-conductor THT female header; 1.0 mm à solder pin; straight; Gripping plate; 1.5 mm²; Pin spacing 3.5 mm; 3-pole; 1,50 mm²; light gray
1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 3-pole; 1.0 mm à solder pin; Gripping plate; 1,50 mm²; light gray.
The WAGO component equivalent to 20911153 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and communication within various industrial applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 90
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 11.4 mm / 0.449 inch
- design:
- With gripping plate
- drilled hole diameter with tolerance:
- 1.2 (+0.1) mm
- fine stranded conductor:
- 0.2 1.5 mm / 24 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.008 MJ
- flammability class per ul94:
- V0
- height:
- 30 mm / 1.181 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 3
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.2 1.5 mm / 24 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 1.785 g
- width:
- 10.5 mm / 0.413 inch
