Description

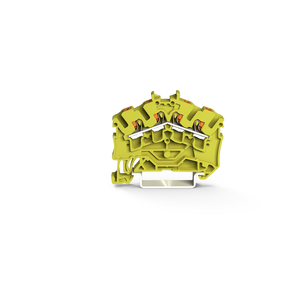

4-conductor ground terminal block; with push-button; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 2,50 mm²; green-yellow
View AllClose
Additional Information
actuation type: |
Push-in || Push-button || Operating tool |
color: |
Green-yellow |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
38.9 mm / 1.531 inch |
design: |
Angled |
fine stranded conductor: |
0.25 4 mm / 22 12 AWG |
fine stranded conductor with ferrule push in termination: |
1 2.5 mm / 18 14 AWG |
fine stranded conductor with insulated ferrule: |
1 2.5 mm / 18 14 AWG |
fire load: |
0.000 MJ |
flammability class per ul94: |
V0 |
height: |
52.6 mm / 2.071 inch |
insulation material: |
Polyamide (PA66) |
marking level: |
Center/side marking |
mounting type: |
DIN-35 rail |
nominal cross section: |
2.5 mm |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
packaging type: |
Box |
ratings per: |
IEC/EN 60947-7-2 |
safety information 1: |
Notice: This terminal block cannot be commoned with push-in type jumper bars. |
safety information 2: |
An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa. |
solid conductor: |
0.25 4 mm / 22 12 AWG |
solid conductor push in termination: |
0.75 4 mm / 18 12 AWG |
strip length: |
10 12 mm / 0.39 0.47 inch |
weight: |
9.147 g |
width: |
5.2 mm / 0.205 inch |
wiring direction: |
Front-entry wiring, angled |
