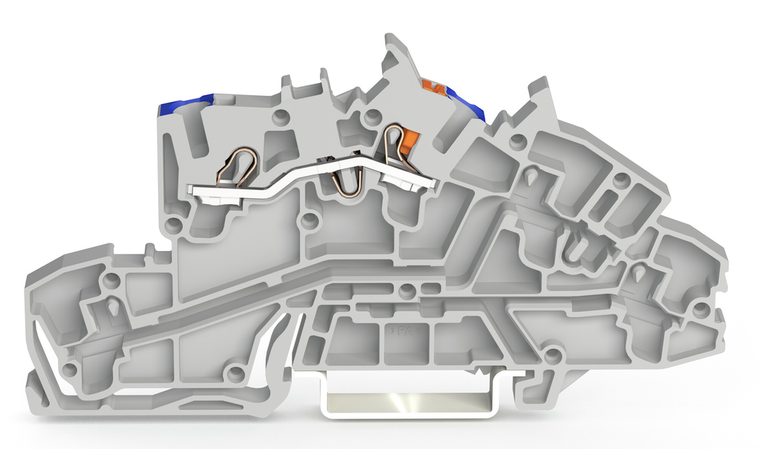

Wago 2203-7551

(No reviews yet) Write a Review

Write a Review

×

Wago 2203-7551

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2203-7551

Condition:

New

actuation type:

Push-in || Operating tool

actuation type 2:

Push-in || Push-button || Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

46.6 mm / 1.835 inch

fine stranded conductor:

0.25 4 mm / 22 12 AWG

fine stranded conductor with ferrule push in termination:

1 2.5 mm / 18 14 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

95.6 mm / 3.764 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

2.5 mm

nominal voltage iii 3:

400 V

note:

Available January 2022

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

24 A

rated current 2:

31 A

rated surge voltage iii 3:

6 kV

solid conductor:

0.25 4 mm / 22 12 AWG

solid conductor push in termination:

0.75 4 mm / 18 12 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

10.002 g

width:

5.2 mm / 0.205 inch

wiring direction:

Front-entry wiring
