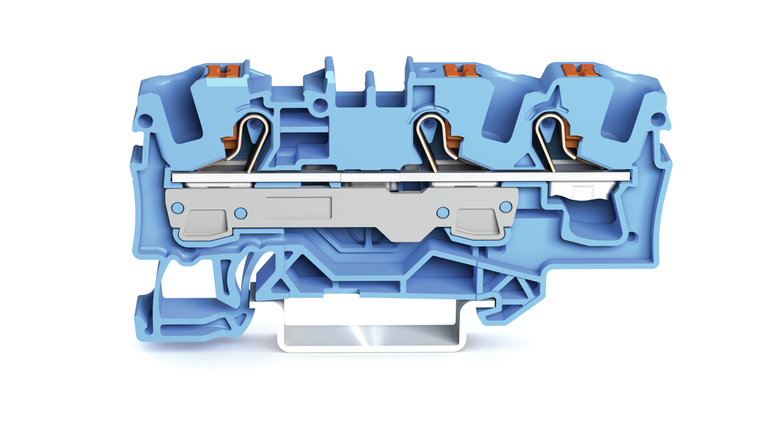

WAGO 2206-1304

(No reviews yet) Write a Review

Write a Review

×

WAGO 2206-1304

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2206-1304

Condition:

New

actuation type:

Push-in || Push-button || Operating tool

approvals per:

UL 1059

color:

Blue

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

32.9 mm / 1.295 inch

design:

Horizontal type

fine stranded conductor:

0.5 10 mm / 20 8 AWG

fine stranded conductor with ferrule push in termination:

1.5 mm / 16 AWG

fine stranded conductor with insulated ferrule:

0.5 6 mm / 20 10 AWG

fire load:

0.216 MJ

flammability class per ul94:

V0

height:

73.3 mm / 2.886 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

6 mm

nominal voltage iii 3:

800 V

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

41 A

rated current 2:

57 A

rated current csa use group b:

50 A

rated current csa use group c:

50 A

rated current ex e ii:

41 A

rated current ex e ii with jumper:

33 A

rated current ul use group b:

50 A

rated current ul use group c:

50 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage en ex e ii:

550 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

ATEX: PTB 18 ATEX 1007 U / IECEx: PTB 18.0014U

solid conductor:

0.5 10 mm / 20 8 AWG

solid conductor push in termination:

1 10 mm / 14 8 AWG

strip length:

13 15 mm / 0.51 0.59 inch

weight:

12.954 g

width:

7.5 mm / 0.295 inch

wiring direction:

Front-entry wiring
