Description

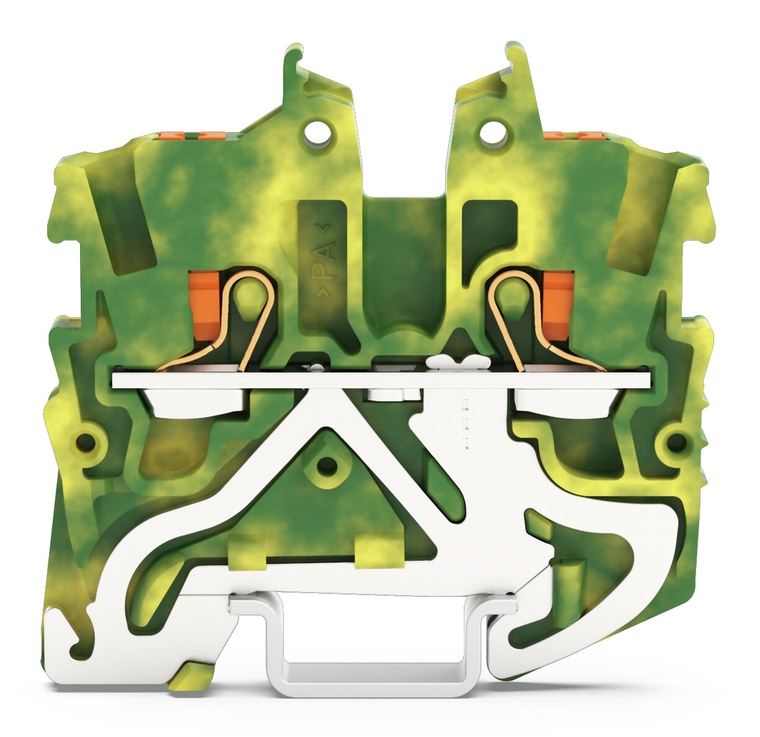

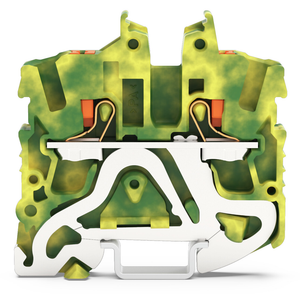

2-conductor miniature ground terminal block; with push-button; 1 mm²; side and center marking; for DIN-15 rail; Push-in CAGE CLAMP; 1,00 mm²; green-yellow
View AllClose
Additional Information
actuation type: |
Push-in || Push-button || Operating tool |
color: |
Green-yellow |
connectable conductor materials: |
Copper |
connection technology: |
Push-in CAGE CLAMP |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
27.9 mm / 1.098 inch |
design: |
Horizontal type |
fine stranded conductor: |
0.14 1.5 mm / 24 16 AWG |
fine stranded conductor with ferrule push in termination: |
0.5 0.75 mm / 20 18 AWG |
fine stranded conductor with insulated ferrule: |
0.14 0.75 mm / 24 18 AWG |
fire load: |
0.000 MJ |
flammability class per ul94: |
V0 |
height: |
34.1 mm / 1.343 inch |
insulation material: |
Polyamide (PA66) |
marking level: |
Center/side marking |
mounting type: |
DIN-15 rail |
nominal cross section: |
1 mm |
note conductor cross section: |
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
ratings per: |
IEC/EN 60947-7-2 |
solid conductor: |
0.14 1.5 mm / 24 16 AWG |
solid conductor push in termination: |
0.5 1.5 mm / 20 16 AWG |
strip length: |
9 11 mm / 0.35 0.43 inch |
weight: |
3.820 g |
width: |
3.5 mm / 0.138 inch |
wiring direction: |
Front-entry wiring |
