Name: WAGO 235-407/331-000 Pack of 30
SKU: 235-407/331-000
Price: 72.3 USD
Availability: InStock

WAGO 235-407/331-000 Pack of 30

(No reviews yet) Write a Review

SKU:

235-407/331-000

MPN:

235-407/331-000

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

depth:

12.5 mm / 0.492 inch

drilled hole diameter with tolerance:

1 (+0.1) mm

fine stranded conductor:

0.75 1.5 mm / 20 14 AWG

fine stranded conductor with insulated ferrule:

0.25 1 mm

fine stranded conductor with uninsulated ferrule:

0.25 1 mm

fire load:

0.095 MJ

flammability class per ul94:

height:

19.1 mm / 0.752 inch

height from the surface:

15.5 mm / 0.61 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

number of solder pins per potential:

packaging type:

Box

pcb contact:

THT

pin spacing:

5/5.08 mm / 0.197/0.2 inch

pole no:

rated current:

17.5 A

rated current csa use group b:

15 A

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.4 x 0.8 mm

solder pin length:

3.6 mm

solid conductor:

0.2 1.5 mm / 20 14 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

5.179 g

width:

36.5 mm / 1.437 inch

Description

Description

Description

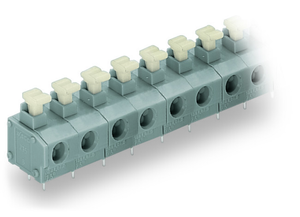

PCB terminal block; Push-button; 1.5 mm Pin spacing 5/5.08 mm; 7-pole; Push-in CAGE CLAMP

Remarks

Item description:

Terminal strips with push-buttons
Simple, push-in terminations of solid and ferruled conductors
Convenient termination/removal of fine-stranded conductors via push-buttons
Set to metric or inch pin spacing by compressing terminal strips together or pulling them apart

Item properties

Miscellaneous

Name	Value	Unit
No. of poles	7
Pin spacing	5/5.08 mm / 0.197/0.2 in
Total number of connection points	7
Total number of potentials	7
Color	gray
Ratings per	IEC/EN 60664-1
Rated voltage (III / 3) [V]	250	V
Rated impulse voltage (III / 3) [kV]	4	kV
Rated voltage (III/2) [V]	320	V
Rated impulse voltage (III / 2) [kV]	4	kV
Rated voltage (II / 2) [V]	630	V
Rated impulse voltage (II / 2) [kV]	4	kV
Rated current [A]	17.5	A
Legend for ratings	(III / 2) Overvoltage category III / Pollution degree 2
Number of connection objects	1
Number of levels	1
Connection technology	Push-in CAGE CLAMP
Number of connection points connector	1
Actuation type	Operating lever
Solid conductor	0.2 1.5 mm / 20 14 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 0.75 mm /
Fine-stranded conductor with ferrule without plastic collar	0.25 0.75 mm /
Strip length	9 10 mm / 0.35 0.39 Inch
Solder pin arrangement	over the entire terminal strip, in line
Solder pin length [mm]	3.6	mm
Drilled hole diameter (tolerance) [mm]	1^{(+ 0.1)}	mm
Material group	I
Insulating material	Polyamide 66 (PA 66)
Flammability class per UL94	V0
Limit temperature range	-60 105
Clamping spring material	Chrome-nickel spring steel (CrNi)
Contact material	Electrolytic copper (Ecu)
Contact plating	tin-plated
Fire load [MJ]	0.102	MJ
Weight [g]	5.389	g
Width	36.5 mm / 1.437 Inch
Height	19.1 mm / 0.752 Inch
Height from the surface	15.5 mm / 0.61 Inch
Depth	12.5 mm / 0.492 Inch
Pin spacing from [mm]	5	mm
