WAGO 243-308 Pack of 50
- SKU:
- 243-308
- Condition:
- New
- actuation type:
- Push-in
- color:
- Light gray
- conductor diameter:
- 0.6 0.8 mm / 22 20 AWG
- conductor diameter note:
- When using conductors of the same diameter, 0.5 mm / 24 AWG or 1 mm / 18 AWG are also possible.
- connectable conductor materials:
- Copper
- connection technology:
- PUSH WIRE
- country of origin sales organisation germany:
- DE
- cover color:
- Light gray
- depth:
- 10 mm / 0.394 inch
- fire load:
- 0.019 MJ
- height:
- 6.8 mm / 0.268 inch
- legend ratings:
- (II / 2) Overvoltage category II / Pollution degree 2
- nominal voltage ii 2:
- 100 V
- packaging type:
- Box
- rated current:
- 0.25
- rated surge voltage ii 2:
- 1.5 kV
- ratings per:
- EN 60664
- solid conductor:
- 22 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- 60 C
- weight:
- 1.440 g
- width:
- 18.4 mm / 0.724 inch
- wiring direction:
- Side-entry wiring
Description

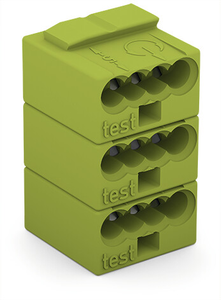

MICRO PUSH WIRE connector for junction boxes; 4-conductor; AWG 22 - 18 solid; yellow
