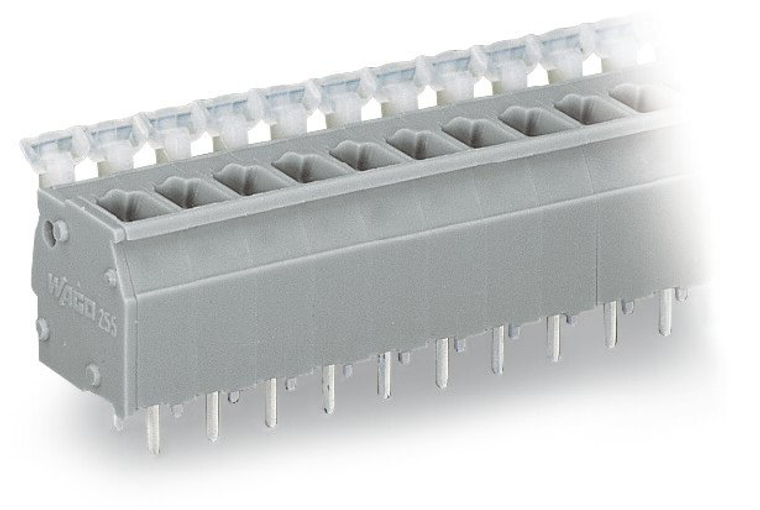

WAGO 255-408 Pack of 25

(No reviews yet) Write a Review
SKU:
255-408
Condition:
New
$117.25

Description

PCB terminal block; Push-button; 2.5 mmý; Pin spacing 5/5.08 mm; 8-pole; CAGE CLAMP; commoning option
View AllClose

Additional Information

actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Gray
conductor connection direction to pcb:
90
connection technology:
CAGE CLAMP«
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
18.3 mm / 0.72 inch
drilled hole diameter with tolerance:
1.1 (+0.1) mm
fine stranded conductor:
0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 12 AWG
fine stranded conductor with insulated ferrule:
0.25 ƒƒ‡ª 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 ƒƒ‡ª 1.5 mm
fire load:
0.190 MJ
flammability class per ul94:
V0
height:
18.2 mm / 0.717 inch
height from the surface:
14.2 mm / 0.559 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2
limit temperature range:
-60 ƒƒ‡ª +105 C
material group:
I
nominal voltage ii 2:
630 V
nominal voltage iii 3:
320 V
note conductor cross section:
12 AWG: THHN, THWN
number of solder pins per potential:
2
packaging type:
Box
pcb contact:
THT
pin spacing:
5/5.08 mm / 0.197/0.2 inch
pole no:
8
rated current:
24 A
rated current csa use group b:
15 A
rated current csa use group d:
0.416666666666667
rated current ul use group b:
15 A
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
4 kV
rated surge voltage iii 2:
4 kV
rated surge voltage iii 3:
4 kV
rated voltage csa use group b:
300 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
320 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
solder pin arrangement:
Over the entire terminal strip (in-line)
solder pin dimensions:
0.7 x 0.7 mm
solder pin length:
4 mm
solid conductor:
0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 12 AWG
strip length:
5 ƒƒ‡ª 6 mm / 0.2 ƒƒ‡ª 0.24 inch
weight:
9.656 g
width:
42.9 mm / 1.689 inch
