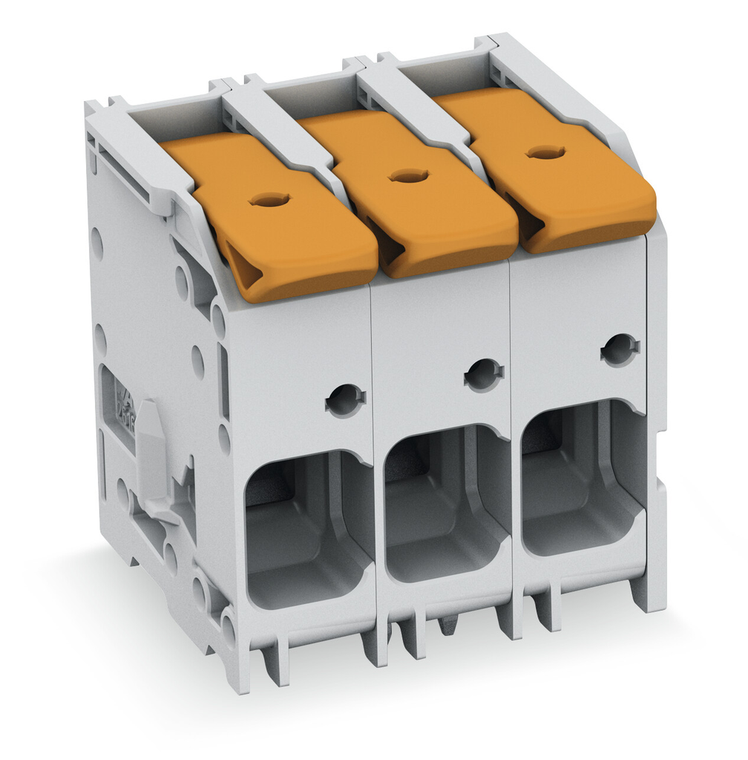

WAGO 2616-1102
- SKU:
- 2616-1102
- Condition:
- New
- actuation type:
- Lever
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- color of actuator:
- Orange
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- DE
- depth:
- 32 mm / 1.26 inch
- drilled hole diameter with tolerance:
- 1.7 (+0.1) mm
- fine stranded conductor:
- 0.75 25 mm / 18 4 AWG
- fine stranded conductor with insulated ferrule:
- 0.75 16 mm
- fine stranded conductor with twin ferrule:
- 0.75 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.75 16 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 37.2 mm / 1.465 inch
- height from the surface:
- 33.2 mm / 1.307 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- number of solder pins per potential:
- 6
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 2
- rated current:
- 76 A
- rated current csa use group b:
- 72 A
- rated current csa use group c:
- 72 A
- rated current csa use group d:
- 72 A
- rated current ul use group b:
- 72 A
- rated current ul use group c:
- 72 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 150 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 150 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1.2 x 1.2 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.75 16 mm / 18 4 AWG
- strip length:
- 18 20 mm / 0.71 0.79 inch
- weight:
- 20.595 g
- width:
- 22.8 mm / 0.898 inch
Description
PCB terminal block; lever; 16 mm; Pin spacing 10 mm; 2-pole; Push-in CAGE CLAMP; 16,00 mm; gray
