WAGO 262-337 Pack of 50
- SKU:
- 262-337
- Condition:
- New
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.113 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- Mounting flange
- packaging type:
- Box
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 6.841 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Side-entry wiring
Description

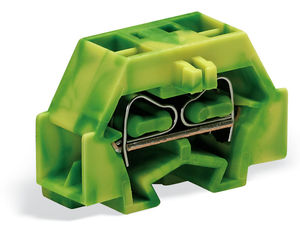

4-conductor terminal block; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm with 209-123 mounting carrier for DIN 35 rail
View AllClose
Electrical Data
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 4 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height from the surface: 23 mm / 0.906 inch
- Depth: 33.5 mm / 1.319 inch
Mechanical Data
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
Material Data
- Color: green-yellow
- Fire load: 0.113 MJ
- Weight: 6.841 g
Commercial data
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4044918638876
- Customs Tariff No.: 85369010000
