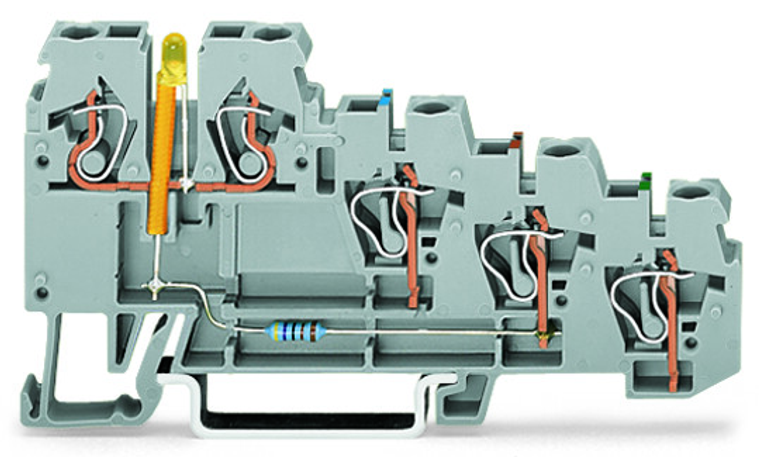

4-conductor sensor terminal block; LED (yellow); for NPN-(low-side) switching sensors; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The Sensr. terminal block from WAGO's 270 series is a quadruple-deck unit featuring a yellow LED for 24Vdc and side marking slots, designed for NPN (low-side) switching sensors. It is gray in color and accommodates 4 conductors and 5 wires with 5 clamps, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block uses CAGE CLAMP spring connections and is mounted on a DIN-35 rail with a 5mm width, equivalent to model 270570281507.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 39 mm / 1.535 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.211 MJ
- flammability class per ul94:
- V0
- height:
- 83 mm / 3.268 inch
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- note on rated current 1:
- LED power consumption: 4.8 mA
- packaging type:
- Box
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 12.064 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
