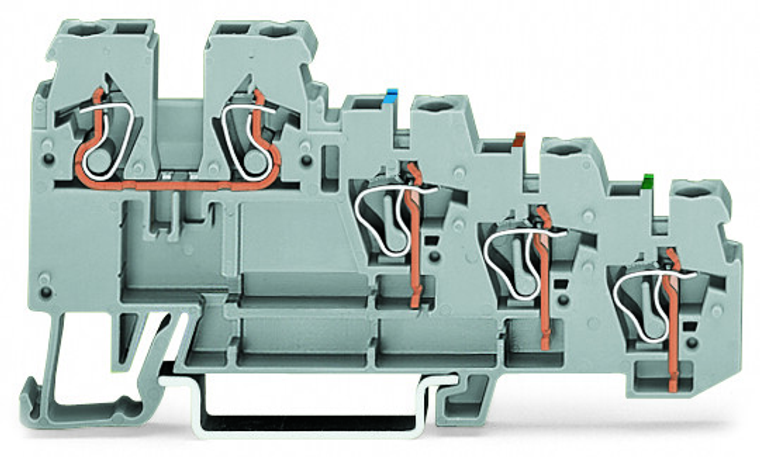

WAGO 270-570
- SKU:
- 270-570
- Condition:
- New
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 39 mm / 1.535 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.201 MJ
- flammability class per ul94:
- V0
- height:
- 83 mm / 3.268 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 10.484 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
Description
4-conductor sensor terminal block; with colored conductor entries; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray
View AllClose
Related Products

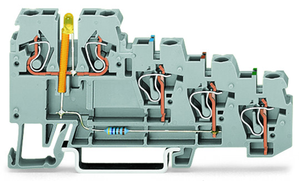

WAGO 270-570/281-507
