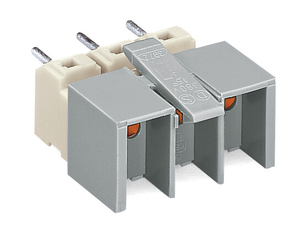

WAGO 272-453/272-485
- SKU:
- 272-453/272-485
- Condition:
- New
Description
Power supply connector; without ground contact; without push-buttons; without snap-in mounting feet; 3-pole; 2,50 mm²; white
View AllClose
Additional Information
color: |
White |
connection technology: |
PUSH WIRE |
country of origin sales organisation germany: |
DE |
depth: |
34 mm / 1.339 inch |
fire load: |
0.155 MJ |
height: |
15.3 mm / 0.602 inch |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
nominal voltage ii 2: |
400 V |
packaging type: |
Bag |
pole no: |
3 |
rated current: |
16 A |
rated surge voltage ii 2: |
4 kV |
rated surge voltage iii 2: |
4 kV |
rated voltage iii 2: |
200 V |
ratings per: |
IEC/EN 60664-1 |
strip length: |
8 9 mm / 0.31 0.35 inch |
weight: |
10.458 g |
width: |
33 mm / 1.299 inch |
