Description

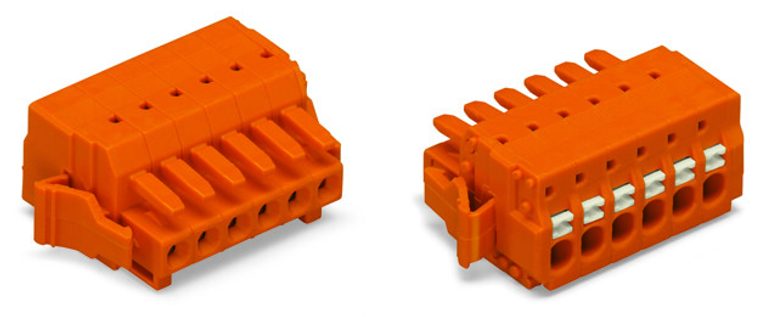

1-conductor female connector; push-button; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.81 mm; 12-pole; 100% protected against mismating; Lateral locking levers; 1,50 mm²; orange
View AllClose
Additional Information
actuation type: |
Push-button |
approvals per: |
CSA |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
color: |
Orange |
conductor entry direction to mating direction: |
0 |
connection technology: |
Push-in CAGE CLAMP |
connector connection type: |
For conductor |
contact material: |
Copper alloy |
contact plating: |
Tin-plated |
contact type pluggable connector: |
Female connector/socket |
country of origin sales organisation germany: |
PL |
depth: |
20.4 mm / 0.803 inch |
fine stranded conductor: |
0.2 1.5 mm / 24 16 AWG |
fine stranded conductor with insulated ferrule: |
0.25 0.75 mm |
fine stranded conductor with uninsulated ferrule: |
0.25 1.5 mm |
fire load: |
0.236 MJ |
flammability class per ul94: |
V0 |
height: |
13.5 mm / 0.531 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +100 C |
locking of plug in connection: |
Locking lever |
material group: |
I |
mismating protection: |
Yes |
nominal voltage ii 2: |
320 V |
nominal voltage iii 3: |
160 V |
packaging type: |
Box |
pin spacing: |
3.81 mm / 0.15 inch |
pole no: |
12 |
rated current: |
0.416666666666667 |
rated current csa use group b: |
0.416666666666667 |
rated current csa use group d: |
0.416666666666667 |
rated current ul use group b: |
0.416666666666667 |
rated current ul use group d: |
0.416666666666667 |
rated surge voltage ii 2: |
2.5 kV |
rated surge voltage iii 2: |
2.5 kV |
rated surge voltage iii 3: |
2.5 kV |
rated voltage csa use group b: |
300 V |
rated voltage csa use group d: |
300 V |
rated voltage iii 2: |
160 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 60664-1 |
safety information 1: |
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure |
solid conductor: |
0.2 1.5 mm / 24 16 AWG |
strip length: |
8 9 mm / 0.31 0.35 inch |
weight: |
11.840 g |
width: |
56.72 mm / 2.233 inch |
