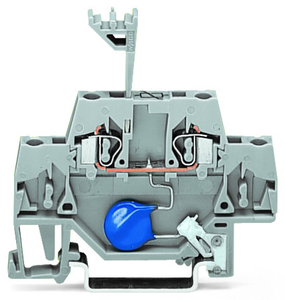

WAGO 280-502/281-613

(No reviews yet) Write a Review

Write a Review

×

WAGO 280-502/281-613

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

280-502/281-613

Condition:

New

capacitance:

1.05 nF

color:

Gray

connection points number:

2

connection technology:

CAGE CLAMP

continuous operating voltage max:

AC 30 V

country of origin sales organisation germany:

DE

depth:

64 mm / 2.52 inch

design:

With direct connection to DIN-rail

discharge current max:

0.25 kA

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.167 MJ

flammability class per ul94:

V0

height from upper edge of din rail:

58.5 mm / 2.303 inch

insulation material:

Polyamide (PA66)

mounting type:

DIN-35 rail

nominal discharge current 8 20 s line:

60 A

nominal operating voltage:

AC 24 V

packaging type:

Box

protection level 8 20 s:

¤ AC 93 V

rated continuous current:

20 A

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

8.400 g

width:

5 mm / 0.197 inch
