Wago

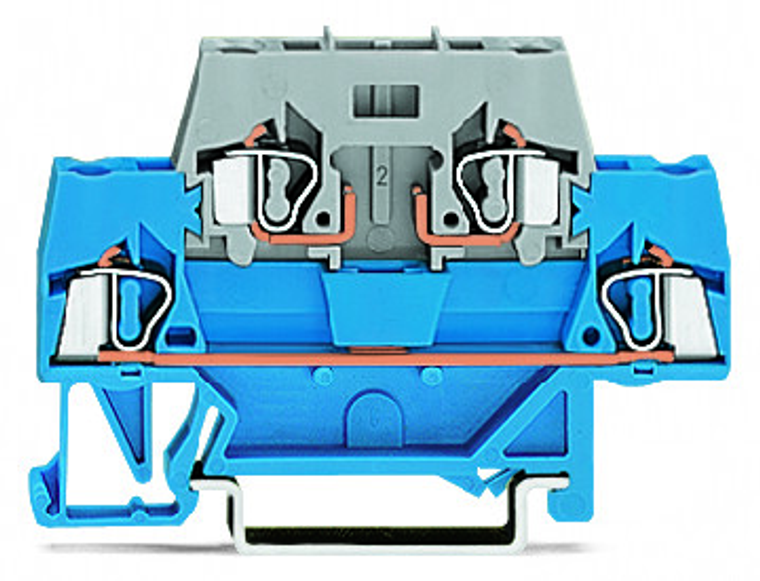

WAGO 280-531 Double-deck terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; blue/gray

SKU:

280-531

UPC:

MPN:

51245287

Condition:

New

actuation type:

Operating tool

connectable conductor materials note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

color:

Blue/gray

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

39.5 mm / 1.555 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.144 MJ

flammability class per ul94:

V0

height:

64 mm / 2.52 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Without marking level

mounting type:

DIN-35 rail

nominal voltage iii 3:

400 V

note conductor cross section:

12 AWG: THHN, THWN

packaging type:

Box

rated current:

0.416666666666667

rated current 2:

20 A

rated surge voltage iii 3:

6 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

9.280 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
