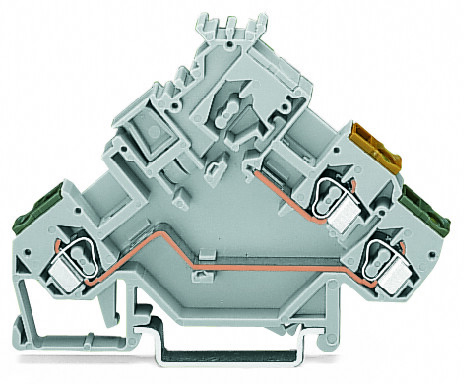

WAGO 280-554
- SKU:
- 280-554
- Condition:
- New
Description
2-conductor actuator terminal block; with colored conductor entries; 2.5 mm®; CAGE CLAMPp>
View AllClose
- Automatically destroys the oxide film during clamping.
- Prevents fresh oxidation at the clamping point.
- Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
- Provides long-term protection against corrosion.
Additional Information
actuation type: |
Operating tool |
connectable conductor materials note: |
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically |
color: |
Gray |
connectable conductor materials: |
Copper || Aluminum |
connection technology: |
CAGE CLAMP |
country of origin sales organisation germany: |
DE |
depth from upper edge of din rail: |
55.5 mm / 2.185 inch |
design: |
Angled |
fine stranded conductor: |
0.08 2.5 mm / 28 12 AWG |
fire load: |
0.183 MJ |
flammability class per ul94: |
V0 |
height: |
80 mm / 3.15 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 3) Overvoltage category III / Pollution degree 3 |
marking level: |
Center marking |
mounting type: |
DIN-35 rail |
nominal voltage iii 3: |
400 V |
note conductor cross section: |
12 AWG: THHN, THWN |
packaging type: |
Box |
rated current: |
20 A |
rated surge voltage iii 3: |
6 kV |
solid conductor: |
0.08 2.5 mm / 28 12 AWG |
strip length: |
8 9 mm / 0.31 0.35 inch |
weight: |
9.730 g |
width: |
5 mm / 0.197 inch |
wiring direction: |
Front-entry wiring |
