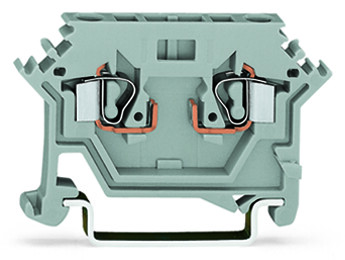

Wago 280-616

WAGO 280-616 2-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray

Wago
SKU:
51133237
$3.61
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm; CAGE CLAMP.

The WAGO 280 series carrier feed-through terminal block is a gray, 1-deck/level component with a pluggable disconnect and side marking slots. It features one disconnect feed-through pole (1P) and accommodates two wires (1 clamp + 1 clamp) for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block supports a rated current of 10A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 280616.

Additional Information
actuation type:
Operating tool
connectable conductor materials note:
Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
color:
Gray
connectable conductor materials:
Copper || Aluminum
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28 mm / 1.102 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.093 MJ
flammability class per ul94:
V0
height:
50 mm / 1.969 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
DIN-35 rail
nominal voltage iii 3:
400 V
packaging type:
Box
rated current:
0.416666666666667
rated surge voltage iii 3:
6 kV
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.08 2.5 mm / 28 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
4.738 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
