Wago

WAGO 280-638

(No reviews yet) Write a Review
SKU:
280-638
MPN:
280-638
Condition:
New
color:
Gray
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28 mm / 1.102 inch
fine stranded conductor:
0.08 2.5 mm / 28 14 AWG
fire load:
0.431 MJ
height:
50 mm / 1.969 inch
mounting type:
DIN-35 rail
number of connection types:
2
packaging type:
Box
pollution degree:
3
rated continuous current:
0.416666666666667
rated surge voltage:
6 kV
rated voltage:
400 V
solid conductor:
0.08 2.5 mm / 28 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
total number of potentials:
2
weight:
20.875 g
width:
22 mm / 0.866 inch
wiring direction:
Front-entry wiring
$16.75

Description

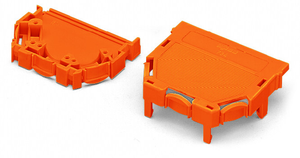

Description Terminal block for pluggable modules; orange separator plate; with 2-conductor terminal blocks; 22 mm wide
Remarks

Item properties

Miscellaneous

Name Value Unit
Total number of connection points  2
Total number of potentials  2
Color  gray
Pollution degree  3
Rated current [A]  10  A
Rated voltage [V]  400  V
Rated impulse voltage [kV]  6  kV
Connection technology  CAGE CLAMP
Solid conductor  0.08 2.5 mm / 28 14 AWG
Strip length  8 9 mm / 0.31 0.35 Inch
Type of wiring  Front-entry wiring
Fire load [MJ]  0.431  MJ
Weight [g]  20.875  g
Width  22 mm / 0.866 Inch
Height from upper-edge of DIN-35 rail  28 mm / 1.102 Inch
Depth  50 mm / 1.969 Inch
Type of mounting  DIN-35 x 15 carrier rail
.

The WAGO 280 series feed-through terminal block is a gray, 1-deck/level unit with a pluggable disconnect and a built-in orange separator, closed on both sides. It features 8 feed-through poles and accommodates 2 wires per pole using CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #14AWG. The terminal block is rated for a current of 10A and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 22mm. It is equivalent to model 280638.
