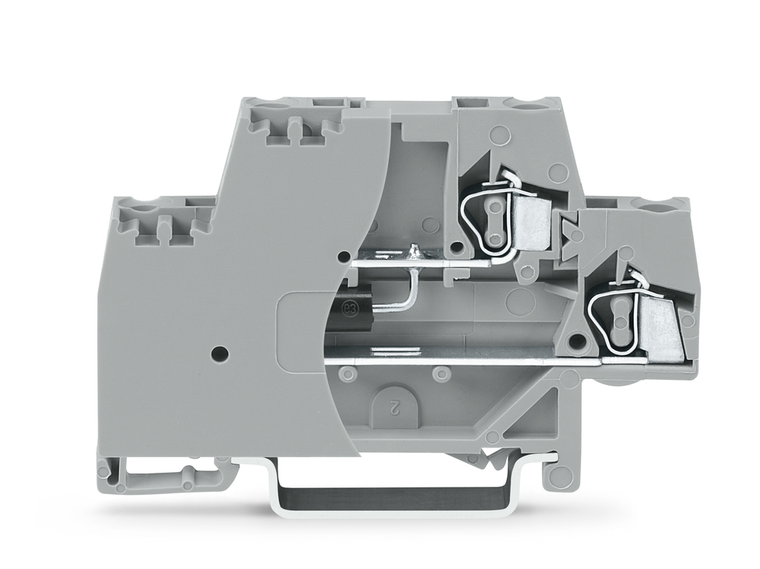

WAGO 280-944/281-591

(No reviews yet) Write a Review

Write a Review

WAGO 280-944/281-591

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

280-944/281-591

UPC:

MPN:

280-944/281-591

Condition:

New

capacitance:

1.35 nF

color:

Gray

connection points number:

4

connection technology:

CAGE CLAMP

continuous operating voltage max:

DC 70 V

country of origin sales organisation germany:

DE

depth:

64 mm / 2.52 inch

design:

With end plate

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.256 MJ

flammability class per ul94:

V0

height from upper edge of din rail:

39.5 mm / 1.555 inch

insulation material:

Polyamide (PA66)

mounting type:

DIN-35 rail

nominal discharge current 8 20 s line:

69 A

nominal operating voltage:

DC 60 V

packaging type:

Box

protection level 8 20 s:

¤ DC 146 V

rated continuous current:

20 A

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

14.182 g

width:

10 mm / 0.394 inch
