WAGO 285-601
- SKU:
- 285-601
- Condition:
- New
- Availability:
- In our warehouse: 8
- actuation type:
- Operating tool || Push-button, both side
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.825 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 6 mm / 0.236 inch
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 12
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 32.240 g
- width:
- 86.1 mm / 3.39 inch
- wiring direction:
- Side-entry wiring
Description

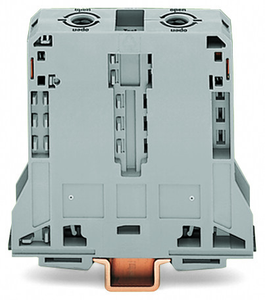

2-conductor through terminal block; 35 mm®; lateral marker slots; only for DIN 35 x 15 rail; 2.3 mm thick; copper; CAGE CLAMP
View AllClose
Electrical Data
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 125 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 6 35 mm / 8 2 AWG
- Strip length: 23 mm / 0.91 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 16 mm / 0.63 inch
- Height from upper-edge of DIN-35 rail: 52.5 mm / 2.067 inch
- Depth: 115.5 mm / 4.547 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 1.162 MJ
- Weight: 131.180 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454115333
- Customs Tariff No.: 85369010000
