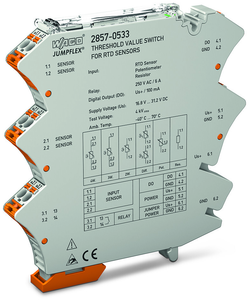

WAGO 2857-533/000-001

(No reviews yet) Write a Review

Write a Review

WAGO 2857-533/000-001

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2857-533/000-001

UPC:

MPN:

2857-533/000-001

Condition:

New

altitude:

A1

bounce time typ:

8 ms

configurable rise fall delay time do:

0 60 s (via software)

configurable rise fall delay time relay:

0 60 s (via software)

configuration options:

WAGO Interface Configuration Software || WAGO Configuration Display

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

contact material relay:

AgNi + Au

continuous current do max:

100 mA (no internal restriction)

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

107 mm / 4.213 inch

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

4 ms

emc emission of interference:

EN 61000-6-4: EN 61326-2-3: EN 50121-3-2

emc immunity to interference:

EN 61000-6-2: EN 61326-2-3: EN 50121-3-2

extended operating temperature at switch on:

ST1

fine stranded conductor:

0.2 2.5 mm / 24 12 AWG

fire load:

1.374 MJ

height:

110 mm / 4.331 inch

input range potentiometer:

0 100 k

input range resistor:

0 100 k

input signal type:

RTD sensors || Potentiometers || Resistor

insulation type input supply and service interface relay output:

Reinforced insulation

insulation type input supply service interface:

Basic insulation

limiting continuous current relay module assembly:

6 A (¤ 60 C): 3 A (60 70 C)

line to neutral conductor voltage ac max:

300 V

measurement range temperature rtd:

-200 850C

mounting type:

DIN-35 rail

nominal supply voltage us:

DC 24 V (SELV)

note:

This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 2 A is not exceeded.

number of make switch on contacts:

1

number of switching thresholds do:

1 or 2 (adjustable)

number of switching thresholds relay:

1 or 2 (adjustable)

operating temperature class:

OT3

overvoltage category:

II

packaging type:

Bag

pollution degree:

2

power consumption at nominal supply voltage:

¤ 40 mA (+ IDO)

power supply interruptions:

S1

power supply switching classes:

C2

power supply type:

24 VDC

protective coatings for populated pcbs:

PC2

pull in time typ:

8 ms

quick temperature changes:

H1

sensor connection:

2-wire: 3-wire: 4-wire: differential

sensor power supply rtd max:

¤ 0.5 mA

sensor types rtd:

Pt100 || Pt200 || Pt500 || Pt1000 || Pt5000 || Pt10000 || Pt10 Pt20000

service life:

L4 at 40 C (max.)

software filter adjustable:

Moving average value (filter level: 30)

solid conductor:

0.2 2.5 mm / 24 12 AWG

standards specifications:

EN 61010-1 || EN 61373

step response typ:

60 ms (2-wire): 360 ms (3-wire): 540 ms (4-wire): 360 ms (Potentiometer)

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage range:

30 %

switching voltage do max:

Supply voltage (applied): 0.3 V

switching voltage max:

AC 250 V

temperature coefficient:

¤ 0,01 %/K

temporary supply voltage dips:

Criterion B

test voltage input relay output supply:

4 kVAC: 60 Hz: 1 min

test voltage input service interface:

3 kVAC: 60 Hz: 1 min

test voltage relay output service interface:

4 kVAC: 60 Hz: 1 min

test voltage supply service interface:

2.5 kVAC: 60 Hz: 1 min

transmission error max:

1 K

wago connector:

picoMAX 5.0

weight:

86.050 g

width:

12.5 mm / 0.492 inch
