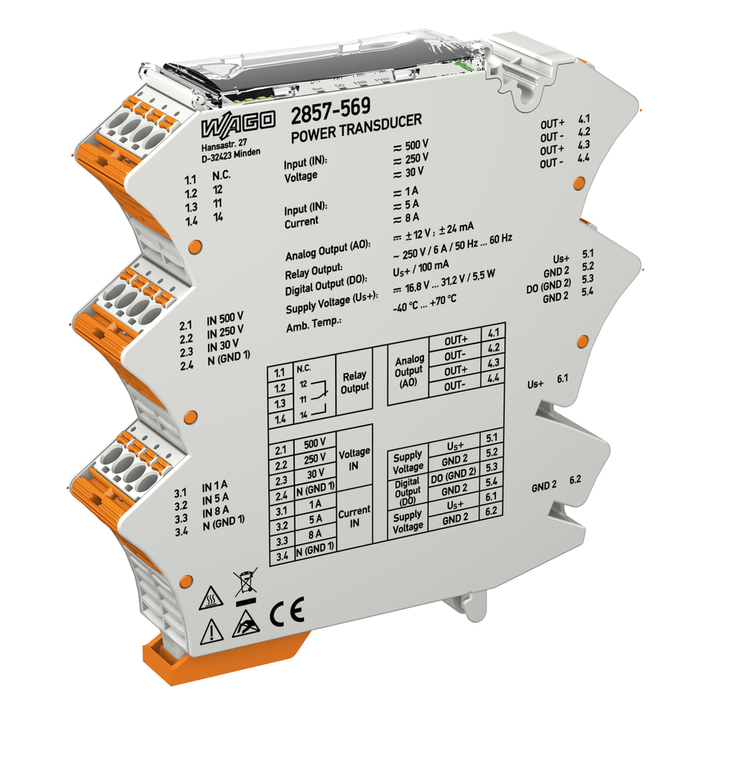

WAGO 2857-569 Single-Phase Power Signal Conditioner
Wago
$800.90
1PH-P-Transducer UI UI
- A relay with changeover contact reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values)
- Adjustable software filter
- Simulation of input/output response via WAGO Interface Configuration Display
- Analog unipolar/bipolar signals (current/voltage) at output
- Additional digital signal output for configured measurement range limits
- The digital output can be configured as a frequency generator or pulse output (S0 interface).
The WAGO component equivalent to 2857569 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and performance within various applications. This component is known for its high quality, durability, and compatibility with other system components, making it a preferred choice for professionals in the industry.
- configurable functions do:
- Disabled || US/GND switching || Threshold value switch || Frequency generator || Pulse output (S0 interface)
- configurable rise fall delay time do:
- 0 60 s (via software)
- configurable rise fall delay time relay:
- 0 60 s (via software)
- configuration options:
- WAGO Interface Configuration Software || WAGO Configuration Display
- conformity marking:
- CE
- connection technology:
- Push-in CAGE CLAMP
- continuous current do max:
- 100 mA (no internal restriction)
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 107 mm / 4.213 inch
- dielectric strength open contact ac 1 min:
- 1 kVrms
- emc emission of interference:
- EN 61000-6-3: EN 61326-2-3
- emc immunity to interference:
- EN 61000-6-2: EN 61326-2-3
- fine stranded conductor:
- 0.2 2.5 mm / 24 12 AWG
- fire load:
- 1.796 MJ
- frequency range:
- 15 400 Hz
- height:
- 110 mm / 4.331 inch
- input current max:
- 1.2 IN (¤ 60 C): 1 IN (60 70 C)
- input signal current:
- AC/DC 1 A (IN 3.1): AC/DC 5 A (IN 3.2) : AC/DC 8 A (IN 3.3)
- input signal type:
- Voltage || Current
- input signal voltage:
- AC/DC 500 V (IN 2.1: per EN 61010-1): AC/DC 300 V (IN 2.1: per UL 61010-1): AC/DC 250 V (IN 2.2) : AC/DC 30 V (IN 2.3)
- input voltage max:
- 1.2 UN
- insulation type input in 2 1 relay output:
- Reinforced insulation
- insulation type input supply analog output relay output:
- Double insulation (impedance and basic insulation) || Requirement: The N (GND 1) input is dangerous when active!
- limit frequency:
- 2 kHz
- limiting continuous current relay module assembly:
- 6 A (¤ 60 C): 3 A (60 70 C)
- line to neutral conductor voltage ac max:
- 300 V
- load impedance current output:
- ¤ 600
- load impedance voltage output:
- 2 k
- measured variables calculated:
- Active power || Apparent power || Reactive power || Mains frequency || Phase angle
- measurement method:
- True RMS measurement (TRMS)
- mounting type:
- DIN-35 rail
- nominal supply voltage us:
- DC 24 V (SELV)
- note:
- This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 6 A is not exceeded.Ad
- number of changeover switchover contacts:
- 1
- number of switching thresholds do:
- 2 (max.)
- number of switching thresholds relay:
- 1 or 2 (adjustable)
- operating altitude max:
- 2000 m
- output signal current:
- 24 mA (SELV)
- output signal type:
- Current || Voltage
- output signal voltage:
- 12 V (SELV)
- overvoltage category:
- III
- packaging type:
- Bag
- pollution degree:
- 2
- power consumption at nominal supply voltage:
- ¤ 70 mA (+ IDO)
- power supply type:
- 24 VDC
- relative humidity:
- 5 85 % (non-condensing)
- resolution current:
- 1 mA (for all measurement ranges)
- resolution voltage:
- 50 mV (IN 2.1) || 30 mV (IN 2.2) || 5 mV (IN 2.3)
- response threshold current:
- 1.5 mA AC / 7.5 mA DC (IN 3.1) || 3 mA AC / 10 mA DC (IN 3.2) || 7.5 mA AC / 12 mA DC (IN 3.3)
- response threshold voltage:
- 500 mVAC / 600 mVDC (IN 2.1) || 50 mVAC / 500 mVDC (IN 2.2) || 20 mVAC / 100 mVDC (IN 2.3)
- setting range frequency generator:
- 0.3 100 Hz
- setting range pulse output:
- 1000 1 Impulse/kW
- software filter adjustable:
- Filter level: 1 30
- solid conductor:
- 0.2 2.5 mm / 24 12 AWG
- standards specifications:
- EN 61010-1 || UL 61010-1 || UL 61010-2-201
- step response max:
- 350 ms (for default settings)
- strip length:
- 9 10 mm / 0.35 0.39 inch
- supply voltage range:
- 30 %
- surrounding air temperature operation:
- -40 70 C
- surrounding air temperature storage:
- -40 85 C
- switching voltage do max:
- Supply voltage (applied): 0.3 V
- switching voltage max:
- AC 250 V
- temperature range of connecting cable per ul 61010 2 201 min:
- 95 C
- temperature range of the connecting cable according to en 61010 2 201:
- (Tsurrounding air + 25 K)
- test voltage input in 2 1 relay output per en 61010 1:
- 5.4 kVAC : 50 Hz: 5 s || 3.6 kVAC: 50 Hz: 1 min
- test voltage input in 2 1 relay output per ul 61010 1:
- 3.51 kVAC: 60 Hz: 1 min
- test voltage supply analog output:
- 3.6 kVAC: 50 60 Hz: 1 min
- transmission error max:
- ¤ 0.5 % for current and voltage (of the full scale value)
- wago connector:
- picoMAX 5.0
- weight:
- 149.000 g
- width:
- 22.5 mm / 0.886 inch
