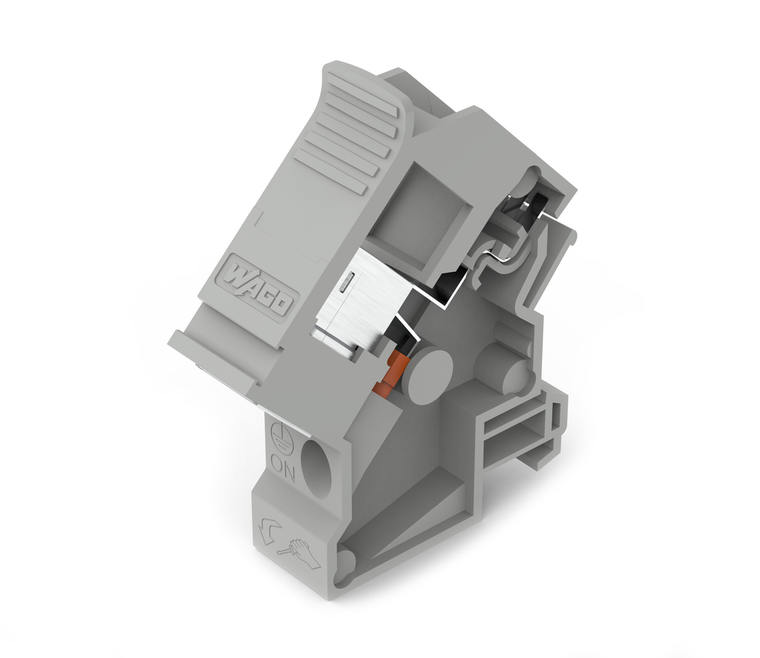

Coupler module; 2xRJ-45; Cat. 6A; in mounting carrier; with shield connection.
The WAGO component equivalent to 289198 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly to enhance performance and reliability in electrical installations.
- connection cable:
- Cat. 6A (min.)
- connection type 1:
- System
- connection type 2:
- System
- connector 2:
- RJ-45 (shielded)
- contact material connector:
- Spring steel
- contact plating connector:
- Au over Ni
- contact resistance:
- 200 m
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 59 mm / 2.323 inch
- fire load:
- 0.000 MJ
- height:
- 90 mm / 3.543 inch
- material carrier rail adapter:
- PC-GF10
- material plug in module:
- Zinc die-cast
- mating cycles:
- 750
- mounting type:
- DIN-35 rail
- packaging type:
- Bag
- pluggable connectors:
- RJ-45 (shielded)
- pole no:
- 8
- pole number 1:
- 8
- pole number 2:
- 8
- protection type:
- IP20
- relative humidity:
- ¤ 95% (non-condensing)
- specialty functions:
- With shield connection
- surrounding air temperature operation:
- -10 60 C
- surrounding air temperature storage:
- -40 70 C
- weight:
- 34.000 g
- width:
- 18 mm / 0.709 inch
