Description

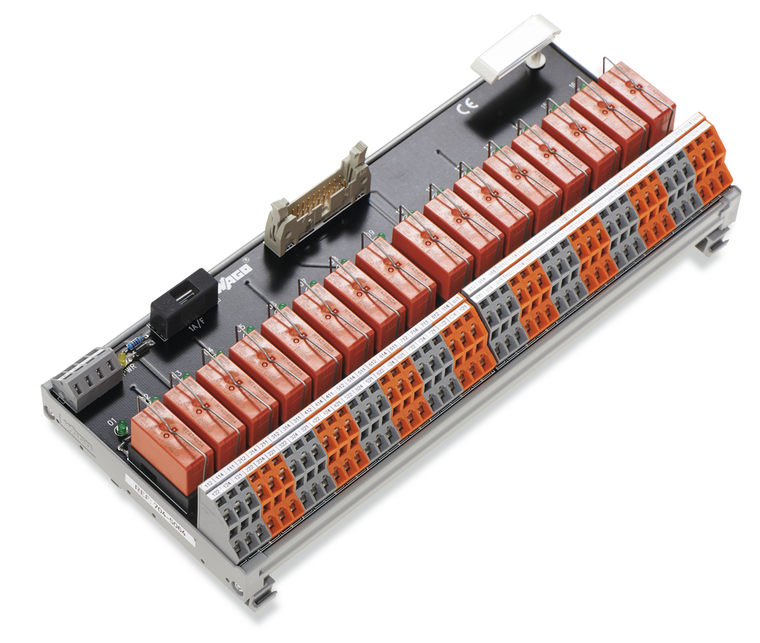

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel relay output; 2 changeover contacts; Double-deck PCB terminal blocks; in mounting carrier
View AllClose
Additional Information
compatible plc i o card types: |
6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BH01-0AA0 |
compatible plc modules: |
Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || GE Fanuc RX3i || Schneider Modicon TM3 || Schneider TSX || Schneider Twido || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Lo |
connection type 1: |
System |
connection type 2: |
Field |
connection type 3: |
Supply |
contact material relay: |
AgNi 90/10 |
country of origin sales organisation germany: |
FR |
depth from upper edge of din rail: |
50 mm / 1.969 inch |
design 2: |
PCB terminal blocks (double-deck) |
design 3: |
PCB terminal blocks |
dielectric strength control load circuit ac 1 min: |
4 kVrms |
dielectric strength load load circuit ac 1 min: |
1 kVrms |
fine stranded conductor 2: |
0.08 2.5 mm / 28 12 AWG |
fine stranded conductor 3: |
0.08 2.5 mm / 28 12 AWG |
fire load: |
13.299 MJ |
height: |
105 mm / 4.134 inch |
inputs outputs: |
16-channel relay output |
internal fuse: |
Supply: 1 A: Relay output: - |
limiting continuous current: |
0.208333333333333 |
making capacity: |
2 ms 8 A |
mating direction: |
Vertical |
mechanical life: |
30 x 106 switching operations |
mounting type: |
DIN-35 rail |
note: |
Independent of the relay used, the maximum continuous current is 5A per channel. |
note conductor cross section: |
12 AWG: THHN, THWN |
number of changeover switchover contacts: |
2 |
packaging type: |
Box |
pluggable connectors: |
DIN 41651 male connector |
pole number 1: |
20 |
pole number 2: |
96 |
pole number 3: |
4 |
pollution degree: |
2 |
rated surge voltage: |
0.8 kV |
rated voltage: |
50 V |
relative humidity: |
¤ 85% (non-condensing) |
solid conductor 2: |
0.08 2.5 mm / 28 12 AWG |
solid conductor 3: |
0.08 2.5 mm / 28 12 AWG |
status indicator: |
Green LED (channel) || Yellow LED (power supply) |
strip length 2: |
5 6 mm / 0.2 0.24 inch |
strip length 3: |
5 6 mm / 0.2 0.24 inch |
surrounding air temperature operation: |
-25 40 C |
surrounding air temperature storage: |
-40 70 C |
switching power resistive max: |
AC 1000 VA: DC 50 W |
switching voltage max: |
AC 250 V: DC 48 V |
wago basic relay: |
788-156 |
wago connector 2: |
WAGO 736 Series |
wago connector 3: |
WAGO 236 Series |
weight: |
645.000 g |
width: |
247 mm / 9.724 inch |
