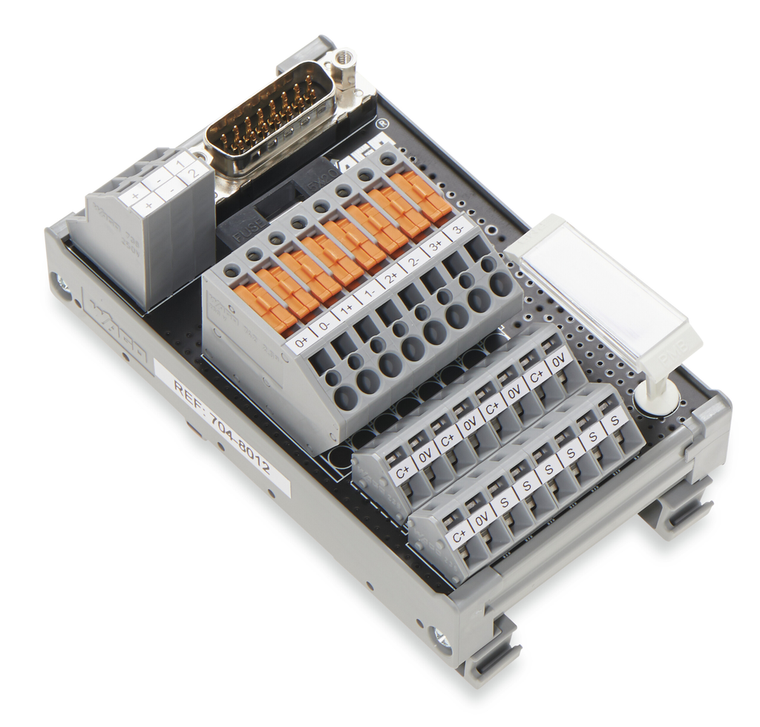

Interface module for system wiring; with solder pin; Male connector; 15-pole; 4-channel analog input or output; 4-wire; PCB disconnect terminal blocks; in mounting carrier.
The WAGO 704 series interface module is designed for mounting on a DIN-35 rail and features a 15-pin D-sub male connector for system connections and spring CAGE CLAMP terminals for field connections. It includes 4 analog inputs and 4 analog outputs, supports cable sizes from 0.08 to 2.5mm², and has a 66mm width. The module operates in ambient temperatures ranging from -20°C to +50°C and is equivalent to model 7048012.
- circuit type:
- 2-wire connection || 4-wire connection
- compatible plc i o card types:
- 6ES7 331-7KB02-0AB0 || 6ES7 331-7KB81-0AB0 || 6ES7 331-7RD00-0AB0 || 6ES7 332-5HB01-0AB0 || 6ES7 332-5HB81-0AB0 || 6ES7 332-5HD01-0AB0 || 6ES7 332-7ND02-0AB0 || 6ES7 531-7QD00-0AB0 || 6ES7 532-5HD00-0AB0 || 6ES7 532-5ND00-0AB0 || IC693 ALG220 || IC69
- compatible plc modules:
- Siemens S7-300 || Siemens S7-1500 || GE Fanuc 9030 || Schneider Modicon TM3 || Schneider TSX || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Logix || WAGO I/O System 753
- connection technology 4:
- CAGE CLAMP
- connection type 1:
- System
- connection type 2:
- Field
- connection type 3:
- Field
- connection type 4:
- Power supply
- country of origin sales organisation germany:
- FR
- depth from upper edge of din rail:
- 50 mm / 1.969 inch
- design 2:
- PCB terminal blocks
- design 3:
- PCB terminal blocks (double-row)
- design 4:
- PCB terminal blocks (double-deck)
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor 3:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor 4:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 1.578 MJ
- height:
- 105 mm / 4.134 inch
- inputs outputs:
- 4-channel analog input or output
- internal fuse:
- Supply: 2 A
- limiting continuous current:
- 0.0416666666666667
- mating direction:
- Vertical
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- operating voltage:
- ¤48 VDC
- packaging type:
- Box
- pluggable connectors:
- D-sub male connector
- pole number 1:
- 15
- pole number 2:
- 8
- pole number 3:
- 16
- pole number 4:
- 6
- pollution degree:
- 2
- rated surge voltage:
- 0.8 kV
- rated voltage:
- 50 V
- relative humidity:
- ¤ 85% (non-condensing)
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- solid conductor 3:
- 0.08 2.5 mm / 28 12 AWG
- solid conductor 4:
- 0.08 2.5 mm / 28 12 AWG
- specialty functions:
- With disconnect/test terminal blocks
- strip length 2:
- 8 9 mm / 0.31 0.35 inch
- strip length 3:
- 5 6 mm / 0.2 0.24 inch
- strip length 4:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -20 50 C
- surrounding air temperature storage:
- -40 70 C
- wago connector 2:
- WAGO 742 Series
- wago connector 3:
- WAGO 236 Series
- weight:
- 131.000 g
- width:
- 66 mm / 2.598 inch
