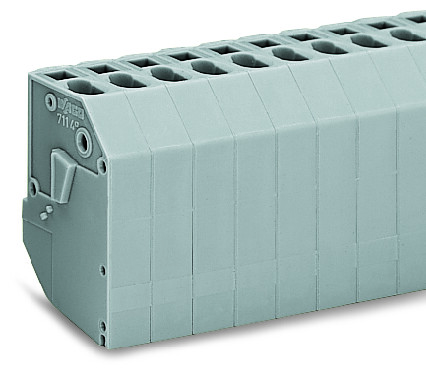

WAGO 711-134

(No reviews yet) Write a Review
SKU:
711-134
MPN:
711-134
Condition:
New
color:
Gray
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth:
23.5 mm / 0.925 inch
fire load:
0.291 MJ
height:
35 mm / 1.378 inch
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
packaging type:
Box
pole no:
4
rated current:
25 A
rated surge voltage iii 2:
8 kV
rated voltage iii 2:
800 V
ratings per:
IEC/EN 60664-1
strip length:
9 10 mm / 0.35 0.39 inch
weight:
13.864 g
width:
30 mm / 1.181 inch
$4.17

Description

Compact transformer terminal block; with marking area for self-adhesive marking strips or for direct marking; 4-pole

Electrical Data
  • Rated voltage (III / 2): 800 V
  • Rated impulse voltage (III / 2): 8 kV
  • Rated current: 25 A
  • Legend (ratings): (III / 2) Overvoltage category III / Pollution degree 2
Connection Data
  • Connection technology: CAGE CLAMP<sup></sup>
  • Strip length: 9 ˜ 10 mm / 0.35 ˜ 0.39 inch
  • No. of poles: 4
  • Total number of connection points: 4
  • Total number of potentials: 4
  • Number of connection types: 1
Geometrical Data
  • Width: 30 mm / 1.181 inch
  • Height: 35 mm / 1.378 inch
  • Depth: 23.5 mm / 0.925 inch
Material Data
  • Color: gray
  • Fire load: 0.291 MJ
  • Weight: 13.864 g
Commercial data
  • Packaging type: BOX
  • Country of origin: DE
  • GTIN: 4044918819367
  • Customs Tariff No.: 85369010000
