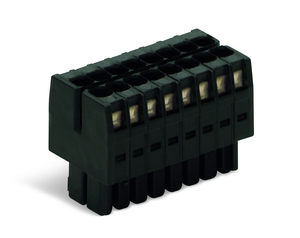

WAGO 713-1111/037-000

(No reviews yet) Write a Review
SKU:
713-1111/037-000
Condition:
New
  • Wago 713-1111/037-000
  • Wago 713-1111/037-000
  • Wago 713-1111/037-000
$22.08

Description

1-conductor female connector, 2-row; CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 22-pole; 100% protected against mismating; Levers; 1,50 mm²; black
View AllClose

Additional Information

actuation type:
Operating tool
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Black
conductor entry direction to mating direction:
0
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper alloy
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
PL
depth:
16 mm / 0.63 inch
fine stranded conductor:
0.08 1.5 mm / 28 16 AWG
fine stranded conductor with insulated ferrule:
0.25 1 mm
fine stranded conductor with uninsulated ferrule:
0.25 1 mm
fire load:
0.193 MJ
flammability class per ul94:
V0
height:
18.8 mm / 0.74 inch
insulation material:
Glass fiber-reinforced polyamide (PA66 GF)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Locking lever
material group:
II
mismating protection:
Yes
nominal voltage ii 2:
250 V
nominal voltage iii 3:
80 V
packaging type:
Box
pin spacing:
3.5 mm / 0.138 inch
pole no:
22
rated current:
0.416666666666667
rated current csa use group b:
0.416666666666667
rated current ul use group b:
0.416666666666667
rated current ul use group c:
0.416666666666667
rated surge voltage ii 2:
2.5 kV
rated surge voltage iii 2:
2.5 kV
rated surge voltage iii 3:
2.5 kV
rated voltage csa use group b:
300 V
rated voltage iii 2:
160 V
rated voltage ul use group b:
300 V
rated voltage ul use group c:
50 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solid conductor:
0.08 1.5 mm / 28 16 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
12.150 g
width:
47 mm / 1.85 inch
