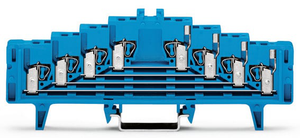

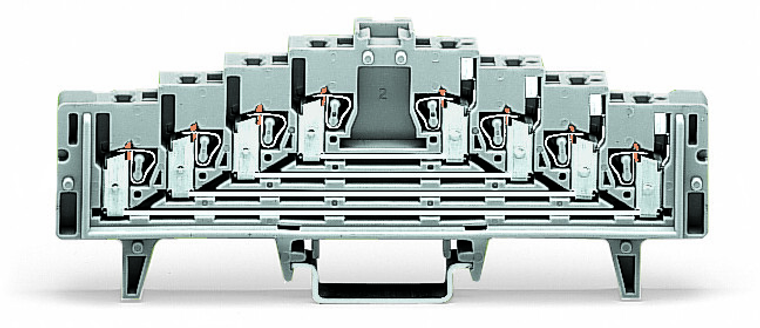

WAGO 727-232/022-000

(No reviews yet) Write a Review

Write a Review

×

WAGO 727-232/022-000

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

727-232/022-000

Condition:

New

actuation type:

Operating tool

color:

White

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

44.5 mm / 1.752 inch

design:

Horizontal type

fine stranded conductor:

0.08 1.5 mm / 28 16 AWG

fire load:

0.571 MJ

flammability class per ul94:

V0

height:

126 mm / 4.961 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking:

A-b-c-d--d-c-b-a

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

250 V

packaging type:

Box

rated current:

0

rated surge voltage iii 3:

4 kV

solid conductor:

0.08 1.5 mm / 28 16 AWG

strip length:

8 10 mm / 0.31 0.39 inch

weight:

33.045 g

width:

7.62 mm / 0.3 inch

wiring direction:

Front-entry wiring
