WAGO 734-109/037-000
- SKU:
- 734-109/037-000
- Condition:
- New
Description

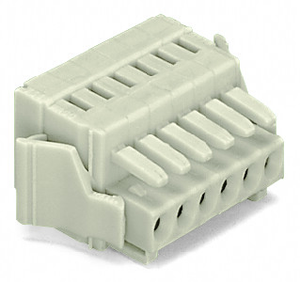

1-conductor female plug; 100% protected against mismating; Locking lever; 1.5 mm®; Pin spacing 3.5 mm; 9-pole
View AllClose
Additional Information
actuation type: |
Operating tool |
approvals per: |
CSA |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
color: |
Light gray |
conductor entry direction to mating direction: |
0 |
connection technology: |
CAGE CLAMP |
connector connection type: |
For conductor |
contact material: |
Copper alloy |
contact plating: |
Tin-plated |
contact type pluggable connector: |
Female connector/socket |
country of origin sales organisation germany: |
DE |
depth: |
18.6 mm / 0.732 inch |
fine stranded conductor: |
0.08 1.5 mm / 28 14 AWG |
fine stranded conductor with insulated ferrule: |
0.25 1.5 mm |
fine stranded conductor with uninsulated ferrule: |
0.25 1.5 mm |
fire load: |
0.122 MJ |
flammability class per ul94: |
V0 |
height: |
13.4 mm / 0.528 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +100 C |
locking of plug in connection: |
Locking lever |
material group: |
I |
mismating protection: |
Yes |
nominal voltage ii 2: |
320 V |
nominal voltage iii 3: |
160 V |
note conductor cross section: |
Terminating 1.5 mm conductors is possible: however insulation diameter does not allow clamping units to be terminated in a row. |
packaging type: |
Box |
pin spacing: |
3.5 mm / 0.138 inch |
pole no: |
9 |
rated current: |
0.416666666666667 |
rated current csa use group b: |
0.416666666666667 |
rated current csa use group d: |
0.416666666666667 |
rated current ul use group b: |
0.416666666666667 |
rated current ul use group d: |
0.416666666666667 |
rated surge voltage ii 2: |
2.5 kV |
rated surge voltage iii 2: |
2.5 kV |
rated surge voltage iii 3: |
2.5 kV |
rated voltage csa use group b: |
300 V |
rated voltage csa use group d: |
300 V |
rated voltage iii 2: |
160 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 60664-1 |
safety information 1: |
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure |
solid conductor: |
0.08 1.5 mm / 28 14 AWG |
strip length: |
6 7 mm / 0.24 0.28 inch |
weight: |
7.359 g |
width: |
43.3 mm / 1.705 inch |
