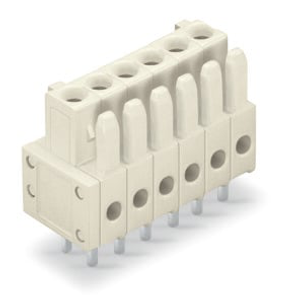

WAGO 734-463/037-000

(No reviews yet) Write a Review

SKU:: 734-463/037-000
Condition:: New
approvals per:: CSA
color:: Light gray
connector connection type:: For PCB
contact material:: Copper alloy
contact plating:: Tin-plated
contact type pluggable connector:: Female connector/socket
country of origin sales organisation germany:: DE
depth:: 10.5 mm / 0.413 inch
drilled hole diameter with tolerance:: 1.4 (+0.1) mm
fire load:: 0.036 MJ
flammability class per ul94:: V0
height:: 18.5 mm / 0.728 inch
height from the surface:: 14.7 mm / 0.579 inch
insulation material:: Polyamide (PA66)
legend ratings:: (III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:: -60 +100 C
locking of plug in connection:: Locking lever
material group:: I
mating direction to the pcb:: 90
mismating protection:: Yes
nominal voltage ii 2:: 320 V
nominal voltage iii 3:: 160 V
number of solder pins per potential:: 1
packaging type:: Box
pcb contact:: THT
pin spacing:: 3.5 mm / 0.138 inch
pole no:: 3
rated current:: 0.416666666666667
rated current csa use group b:: 0.416666666666667
rated current csa use group d:: 0.416666666666667
rated current ul use group b:: 0.416666666666667
rated current ul use group d:: 0.416666666666667
rated surge voltage ii 2:: 2.5 kV
rated surge voltage iii 2:: 2.5 kV
rated surge voltage iii 3:: 2.5 kV
rated voltage csa use group b:: 300 V
rated voltage csa use group d:: 300 V
rated voltage iii 2:: 160 V
rated voltage ul use group b:: 300 V
rated voltage ul use group d:: 300 V
ratings per:: IEC/EN 60664-1
safety information 1:: The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solder pin arrangement:: Over the entire female connector (in-line)
solder pin dimensions:: 0.9 x 0.9 mm
solder pin length:: 3.8 mm
weight:: 1.990 g
width:: 22.3 mm / 0.878 inch
