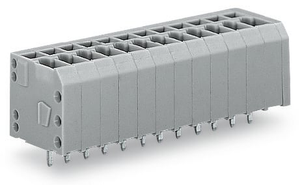

WAGO 739-309

(No reviews yet) Write a Review

Write a Review

×

WAGO 739-309

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

739-309

Condition:

New

actuation type:

Operating tool

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

90

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

13.4 mm / 0.528 inch

drilled hole diameter with tolerance:

1.1 (+0.1) mm

fine stranded conductor:

0.08 1.5 mm / 28 14 AWG

fine stranded conductor with insulated ferrule:

0.25 1 mm

fine stranded conductor with uninsulated ferrule:

0.25 1.5 mm

fire load:

0.105 MJ

flammability class per ul94:

V0

height:

15.7 mm / 0.618 inch

height from the surface:

12.3 mm / 0.484 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

320 V

nominal voltage iii 3:

160 V

note conductor cross section:

14 AWG: THHN, THWN

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

3.5 mm / 0.138 inch

pole no:

9

rated current:

17.5 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.6 x 0.8 mm

solder pin length:

3.4 mm

solid conductor:

0.08 1.5 mm / 28 14 AWG

strip length:

5 6 mm / 0.2 0.24 inch

weight:

5.886 g

width:

33 mm / 1.299 inch
