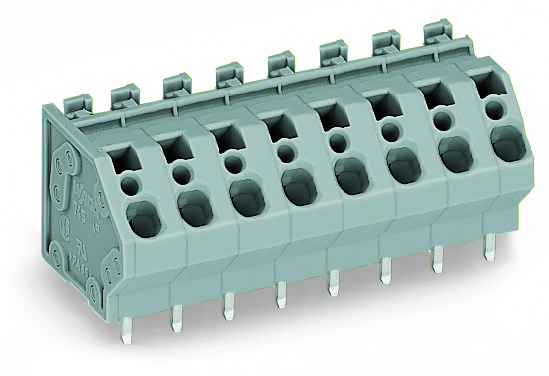

WAGO 745-157
- SKU:
- 745-157
- Condition:
- New
Description
PCB terminal block; 4 mm²; Pin spacing 7.5 mm; 7-pole; CAGE CLAMP; commoning option; 4,00 mm²; gray
View AllClose
Additional Information
actuation type: |
Operating tool |
approvals per: |
CSA |
clamping spring material: |
Chrome nickel spring steel (CrNi) |
color: |
Gray |
conductor connection direction to pcb: |
45 |
connection technology: |
CAGE CLAMP |
contact material: |
Electrolytic copper (ECu) |
contact plating: |
Tin-plated |
country of origin sales organisation germany: |
PL |
depth: |
22.9 mm / 0.902 inch |
drilled hole diameter with tolerance: |
1.5 (+0.1) mm |
fine stranded conductor: |
0.08 4 mm / 28 12 AWG |
fine stranded conductor with insulated ferrule: |
0.25 2.5 mm |
fine stranded conductor with uninsulated ferrule: |
0.25 2.5 mm |
fire load: |
0.328 MJ |
flammability class per ul94: |
V0 |
height: |
23 mm / 0.906 inch |
height from the surface: |
19 mm / 0.748 inch |
insulation material: |
Polyamide (PA66) |
legend ratings: |
(III / 2) Overvoltage category III / Pollution degree 2 |
limit temperature range: |
-60 +105 C |
material group: |
I |
nominal voltage ii 2: |
1000 V |
nominal voltage iii 3: |
500 V |
number of solder pins per potential: |
2 |
packaging type: |
Box |
pcb contact: |
THT |
pin spacing: |
7.5 mm / 0.295 inch |
pole no: |
7 |
rated current: |
32 A |
rated current csa use group b: |
20 A |
rated current csa use group c: |
20 A |
rated current csa use group d: |
0.416666666666667 |
rated current ul use group b: |
20 A |
rated current ul use group c: |
20 A |
rated current ul use group d: |
0.416666666666667 |
rated surge voltage ii 2: |
6 kV |
rated surge voltage iii 2: |
6 kV |
rated surge voltage iii 3: |
6 kV |
rated voltage csa use group b: |
300 V |
rated voltage csa use group c: |
150 V |
rated voltage csa use group d: |
300 V |
rated voltage iii 2: |
630 V |
rated voltage ul use group b: |
300 V |
rated voltage ul use group c: |
150 V |
rated voltage ul use group d: |
300 V |
ratings per: |
IEC/EN 60664-1 |
solder pin arrangement: |
Over the entire terminal strip (in-line) |
solder pin dimensions: |
0.8 x 1.2 mm |
solder pin length: |
4 mm |
solid conductor: |
0.08 4 mm / 28 12 AWG |
strip length: |
8 9 mm / 0.31 0.35 inch |
weight: |
17.619 g |
width: |
51.5 mm / 2.028 inch |
