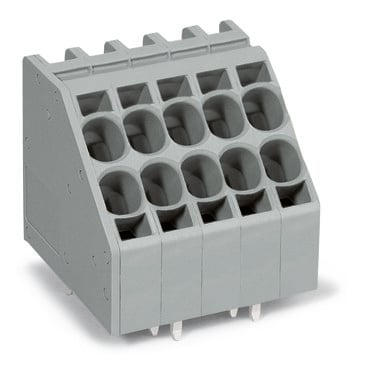

WAGO 746-2310

SKU:

746-2310

UPC:

MPN:

746-2310

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

45

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

37 mm / 1.457 inch

drilled hole diameter with tolerance:

2.2 (+0.1) mm

fine stranded conductor:

0.5 10 mm / 20 8 AWG

fine stranded conductor with insulated ferrule:

0.5 6 mm

fine stranded conductor with uninsulated ferrule:

0.5 6 mm

fire load:

1.277 MJ

flammability class per ul94:

V0

height:

41.3 mm / 1.623 inch

height from the surface:

36.9 mm / 1.453 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

800 V

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

7.5 mm / 0.295 inch

pole no:

10

rated current:

50 A

rated current csa use group b:

44 A

rated current csa use group c:

44 A

rated current ul use group b:

50 A

rated current ul use group c:

50 A

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

1.6 x 1.2 mm

solder pin length:

4.4 mm

solid conductor:

0.5 10 mm / 20 8 AWG

strip length:

13 15 mm / 0.51 0.59 inch

weight:

77.442 g

width:

77.7 mm / 3.059 inch
