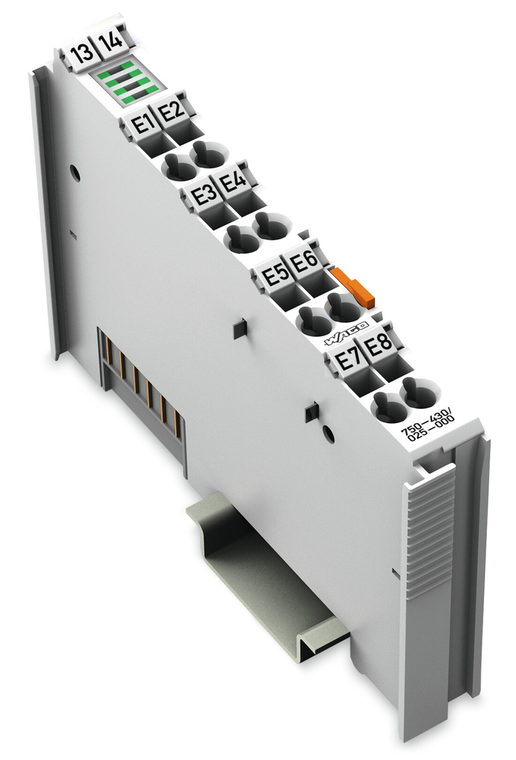

LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7: LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8
input characteristic:
High-side switching
input current per channel for signal 1 typ:
2.8 mA
input data width internal max:
8 bits
input filter digital:
3 ms
isolation:
500 V system/field
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
number of digital inputs:
8
number of incoming power jumper contacts:
2
number of outgoing power jumper contacts:
2
operating altitude:
0 2000 m
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
pollution degree 5:
2 per IEC 61131-2
power consumption 5 v system supply:
17 mA
protection type:
IP20
relative humidity with condensation:
Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of 20 to +60 C (except for wind-driven precipitation, water and ice formation)
relative humidity without condensation:
0.95
sensor connection:
8 x (1-wire)
shock resistance:
15g per IEC 60068-2-27
signal type:
Voltage
solid conductor:
0.08 2.5 mm / 28 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
