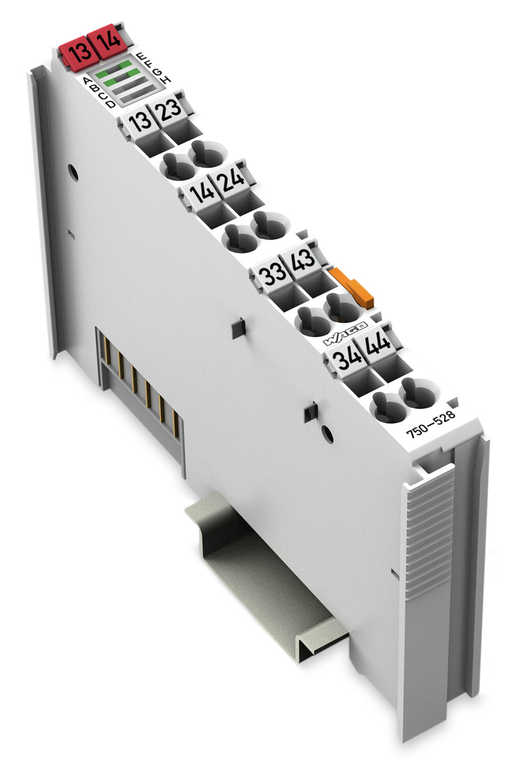

4-channel digital output; 30 VAC/VDC; 2.0 A; Solid-state; isolated; light gray.
The WAGO 750 series standard AC/DC digital output slice module features 4 digital outputs (30Vac/30Vdc, high-side switching, 2-wire) with a 2A solid-state relay and isolated 4I/O. It operates on a 5Vdc supply voltage provided by the system and includes spring CAGE CLAMP connections for secure wiring. The module is designed for DIN-35 rail mounting with a 12mm width and has an IP20 protection rating. It is suitable for ambient temperatures ranging from 0°C to +55°C and is equivalent to model 750528.
- actuator connection:
- 4 x (2-wire)
- color:
- Light gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 8 x CAGE CLAMP
- contact resistance max:
- 0.035
- contact resistance typ:
- 0.02
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 0.416666666666667
- delay time t off from 1 to 0:
- 20000 s
- delay time t on from 0 to 1:
- 1000 s
- depth:
- 69.8 mm / 2.748 inch
- depth from upper edge of din rail:
- 62.6 mm / 2.465 inch
- emc emission of interference:
- Per EN 61000-6-3, -4: marine applications
- emc immunity to interference:
- Per EN 61000-6-1, -2: marine applications
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.881 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- indicators:
- LED (A, B, E, F) green: Status DO 1 DO 4
- inductive load switch off energy dissipation max:
- 0.18 J
- isolation:
- 500 V system/field or channel/channel
- load type:
- Resistive: inductive (Limit induction voltage peaks externally.)
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of digital outputs:
- 4
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- 0 2000 m
- output characteristic:
- High-side switching
- output current:
- Requires external fuses
- output current module:
- 0.333333333333333
- output current per channel:
- 0.0833333333333333
- output internal data width max:
- 4 bits
- overvoltage category:
- II
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- power consumption 5 v system supply:
- 57 mA
- power consumption field supply module with no external load:
- 0 mA
- protection class:
- III
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- signal type:
- Voltage
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 30 VAC/DC, SELV: via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- switching frequency max:
- 1 Hz
- total number of channels module:
- 4
- vibration resistance:
- 4g per IEC 60068-2-6
- voltage signal type:
- 30 VAC/DC
- weight:
- 53.999 g
- width:
- 12 mm / 0.472 inch
- wiring interface:
- Fixed
