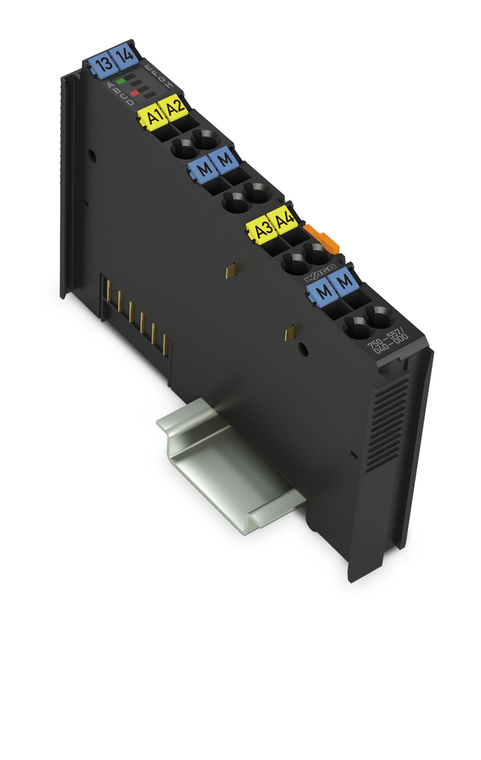

4 x 16-bit data: 4 x 8-bit control/status (optional)
depth:
67.8 mm / 2.669 inch
depth from upper edge of din rail:
60.6 mm / 2.386 inch
derating:
Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 +30 %): for -40 +55 C: 24 V (-25 +20 %): for +55 +70 C: 24 V (-25 +10 %): Lower limit in all temperature ranges: 27.5 % (
dielectric strength:
510 VAC/775 VDC: per EN 60870-2-1
emc emission of interference:
Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
emc immunity to interference:
Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994
exposure to pollutants:
Per IEC 60068-2-42 and IEC 60068-2-43
fine stranded conductor:
0.25 2.5 mm / 24 14 AWG
fire load:
0.147 MJ
height:
100 mm / 3.937 inch
housing material:
Polycarbonate: polyamide 6.6
load impedance voltage output:
5 k
mounting position:
Horizontal (standing/lying): vertical
mounting type:
DIN-35 rail
number of analog outputs:
4
number of incoming power jumper contacts:
2
number of outgoing power jumper contacts:
2
operating altitude:
Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
output error deviation max of the upper range value:
0.001
output error reference temperature:
25 C
packaging type:
Box
permissible h2s contaminant concentration at a relative humidity 75:
10 ppm
permissible so2 contaminant concentration at a relative humidity 75:
25 ppm
pollution degree 5:
2 per IEC 61131-2
power consumption 5 v system supply:
125 mA
protection type:
IP20
rated surge voltage:
1 kV
recovery time typ:
100 ms
relative humidity with condensation:
Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
relative humidity without condensation:
0.95
resolution bit:
12 bits
shock resistance:
Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
signal type:
Voltage
solid conductor:
0.25 2.5 mm / 24 14 AWG
strip length:
8 9 mm / 0.31 0.35 inch
supply voltage field:
24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact): Derating must be observed!
supply voltage system:
5 VDC: via data contacts
surrounding air temperature operation:
-40 70 C
surrounding air temperature storage:
-40 85 C
temperature error max of the output range value:
0.01 %/K
total number of channels module:
4
vibration resistance:
Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
