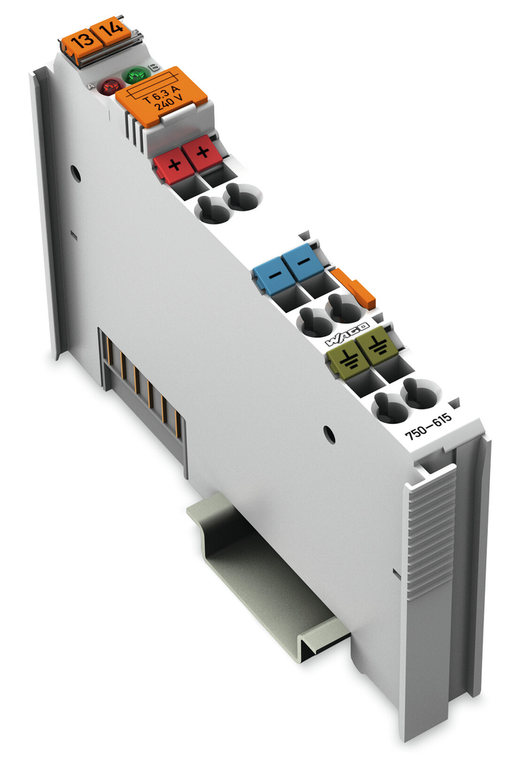

WAGO 750-615

(No reviews yet) Write a Review

Write a Review

WAGO 750-615

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

750-615

UPC:

MPN:

750-615

Condition:

New

color:

Light gray

conformity marking:

CE

connection technology field supply:

6 x CAGE CLAMP

connection type 1:

Field supply

country of origin sales organisation germany:

DE

current carrying capacity power jumper contacts:

6.3 A

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.486 MJ

fuse:

5 x 20: T 6.3 A (not included)

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

number of outgoing power jumper contacts:

3

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

protection type:

IP20

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

120 VAC: via power jumper contacts (power supply via CAGE CLAMP connection: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

vibration resistance:

Per IEC 60068-2-6

voltage signal type:

120 VAC

weight:

50.000 g

width:

12 mm / 0.472 inch
